An investigation of the pattern formed by soil transfer when clothing fabrics are placed on soil using visual examination and image processing analysis

Kathleen R. Murray

School of Biological Sciences, The University of Adelaide, Adelaide, Australia

Centre for Australian Forensic Soil Science, CSIRO Land and water, Urrbrae, Australia

E-mail : bhuvaneswari.bibleraaj@uhsm.nhs.uk

Robert W. Fitzpatrick

School of Biological Sciences, The University of Adelaide, Adelaide, Australia

Centre for Australian Forensic Soil Science, CSIRO Land and water, Urrbrae, Australia

Ralph Bottrill

Centre for Australian Forensic Soil Science, CSIRO Land and water, Urrbrae, Australia

Mineral Resources Tasmania, Rosny Park, Australia

Hilton Kobus

Centre for Australian Forensic Soil Science, CSIRO Land and water, Urrbrae, Australia

Forensic Science Research Centre, Flinders University, Bedford Park, Australia

DOI: 10.15761/FSC.1000110

Article
Article Info
Author Info
Figures & Data

Abstract

A series of soil transference experiments led to the development of two methods to identify and interpret trace soil patterns on clothing fabric. Instigated by an unsolved murder, this paper developed previous field experiments to visually interpret trace soil patterns on a simulated clothed victim placed on soil during a crime. Soil transfer patterns were easily identified using direct visual analysis. Image processing software was used to analyse digital photographs and provided objective, standardised and comprehensive numerical data. This object-oriented classification of all trace soil objects transferred (≥ 2 pixels) allowed directionality and abundance of transferred soil to be determined and additionally Munsell soil colour classification could be made.

To gain greater understanding of how the physical transference of soil on a victim’s clothing might indicate the circumstances of an attack, 400 soil transfer experiments investigated two methods of placing weighted fabric on a wet or dry soil surface. The methodology has now been applied in other case work.

Key words

clothing fabric, forensic, image-processing, placing, soil, transference

Introduction

Forensic soil evidence has the ability to help police solve crime by providing valuable associative physical evidence in any circumstance where it is found [1-9]. However, a void in forensic knowledge was discovered during a homicide investigation in Western Australia. During the trial in 2012, which was before a judge only, the judge concluded that the mineralogy data from the brick particles on the victim’s bra and the bricks from her front driveway suggested she was initially attacked in her front yard and not where her body was buried [10-14].

However, at the time of the trial, no scientific research had been undertaken to interpret trace soil evidence patterns on common clothing fabric types. Therefore, the circumstances of the attack could not be ascertained from this soil evidence alone [12,14]. This murder remains unsolved.

Recent soil transfer experiments (STEs), both in the laboratory and field, documented distinct differences in trace soil patterns when a simulated clothed human body is either dragged or placed upon a soil surface [15-17]. Up to 20 different soil types and five common clothing fabrics were tested to better understand the influence of a specific soil transfer method, soil type, fabric type and surface irregularities/appendages (clothing seams, plastic buttons and metal buckles) on resulting trace soil patterns on fabric. An important outcome of this work was the publication of results from testing different soil transference methods relevant to soil evidence on clothing (mainly from a bra) from the unsolved homicide from Western Australia [10-14].

Using the same 20 soil types and four fabrics (cotton, polyester-cotton, nylon and polar fleece (polyester brushed on both sides)), 400 STEs were conducted to advance scientific knowledge of forensic soil science.

Materials and methods

Soil samples

Twenty (20) natural and anthropogenic soils [18] (otherwise known as Technosol [19,20] or human-altered or human-transported (HAHT) [21]), originated from three locations: the University of Tasmania (UTas) Research Farm at Richmond Rd, Cambridge, Pinnacle Rd on Mount Wellington and the Royal Tasmanian Botanical Gardens (RTBG), Lower Domain Rd, Hobart, Tasmania, Australia (Figure 1) [22]. Table 1 provides a summary of the soil morphology and classifications of these soil samples. Full descriptions of each soil is provided in Murray et al. [22].

Figure 1. Soil map shows the three soil site areas of Cambridge, Hobart and Mount Wellington, Tasmania [23]; provided by Murray et al. [22].

Table 1. Soil morphology and Australian Soil Classification of soil materials [18] and approximate corresponding classifications for World Reference Base for Soil resources class [19] provided by Murray et al. [22].

Locality (depth cm)

Centre for Australian Forensic Soil Science (CAFSS) code

Munsell¹ Soil Colour fine <2 mm (wet) (dry)

Soil type²

Brief description

The Australian soil classification

The world reference base for soil resources (WRB)

Site 1: UTas farm horizon 1 (0-10 cm)

110.1.1

Very dark brown 10YR 2/2 Dark grayish brown 10YR 4/2

Duplex soil with nonrestricted clayey subsoil

Gravel (50%); clayey sand, water repellent, 6.92% Carbon (C).

Humose, Mesotrophic, Brown Chromosol; medium, moderately gravelly, loamy, clayey, moderate

Haplic, Luvisol (Clayic, Cutanic)

Site 1: UTas farm horizon 2 (15-30 cm)

110.1.2

Very dark brown 10YR 2/2 Brown 10YR 5/3

As above

Gravel (45%); sandy loam, water repellent, 2.46% Carbon (C).

As above

As above

Site 1: UTas farm horizon 3 (40-60 cm)

110.1.3

Strong brown 7.5YR 4/6 Strong brown 7.5YR 5/6

As above

Gravel (90%); heavy clay, non-water repellent, 0.92% Carbon (C).

As above

As above

Site 1: UTas farm horizon 4 (60-80 cm)

110.1.4

Strong brown 7.5YR 5/6 Reddish yellow 7.5YR 6/6

As above

Gravel (90%); medium-heavy clay, non-water repellent, 0.26% Carbon (C).

As above

As above

Site 1: UTas farm horizon 5 (80-100 cm)

110.1.5

Dark brown 7.5YR 3/4 Reddish yellow 7.5YR 6/6

As above

Gravel (40%); clayey sand, non-water repellent, 0.19% Carbon (C).

As above

As above

Site 2: UTas farm horizon 1 (0-17 cm)

110.2.1

Very dark brown 10YR 2/2 Grayish brown 10YR 5/2

Duplex soil with restricted sodic clayey subsoil

Gravel (35%); sandy loam, non-water repellent, 2.61% Carbon (C).

Vertic, Mottled-Mesonatric, Brown Sodosol; medium, moderately gravelly, loamy, clayey, deep

Vertic, Abruptic Solonetz (Albic, Hypernatric)

Site 2: UTas farm horizon 2 (17-34 cm)

110.2.2

Brown 10YR 4/3 Pale brown 10YR 6/3

As above

Gravel (95%); medium-heavy clay, non-water repellent, 1.14% Carbon (C).

As above

As above

Site 3: UTas farm horizon 1 (0-10 cm)

110.3.1

Very dark gray 10YR 3/1 Dark grayish brown 10YR 4/2

Poorly structured cracking clay

Gravel (90%); medium clay, water repellent, 2.37% Carbon (C).

Endocalcareous, Massive, Brown Vertosol; very gravelly, fine, very fine, deep

Calsic, Vertisol (Gilgaic, Gleyic)

Site 3: UTas farm horizon 2 (20-40 cm)

110.3.2

Yellowish brown 10YR 5/4 Grayish brown 10YR 4/2

As above

Gravel (97%); heavy clay, non-water repellent, 0.84% Carbon (C).

As above

As above

Site 3: UTas farm horizon 3 (40-70 cm)

110.3.3

Light yellowish brown 10YR 6/4 Light gray 10YR 7/2

As above

Gravel (90%); medium clay, non-water repellent, 3.54% Carbon (C).

As above

As above

Site 3: UTas farm horizon 4 (70-110 cm)

110.3.4

Yellowish brown 10YR 5/4 Brown 10YR 5/3

As above

Gravel (90%); heavy clay, non-water repellent, 0.44% Carbon (C).

As above

As above

Site 4: Mount Wellington horizon 1 (0-10 cm)

110.4.1

Very dark brown 10YR 2/2 Very dark grayish brown 10YR 3/2

Well structured clayey soil with boulders

Gravel (70%); sandy clay loam, water repellent, 12.8% Carbon (C).

Humose-Mottled, Placic, Brown Kandosol; medium, moderately gravelly, loamy, clayey, deep

 Xanthic, Ferretic, Ferralsol (Clayic, Colluvic)

Site 4: Mount Wellington horizon 3 (40-60 cm)

110.4.3

Strong brown 7.5YR 4/6 Brownish yellow 10YR 6/6

As above

Gravel (70%); sandy clay loam, non-water repellent, 0.96% Carbon (C).

As above

As above

Site 4: Mount Wellington horizon 5 (110-140 cm)

110.4.5

Strong brown 7.5YR 4/6 Strong brown 7.5YR 5/6

As above

Gravel (75%); sandy clay loam, non-water repellent, 0.34% Carbon (C).

As above

As above

 Site 5: rose garden path (0-10 cm)

110.5.1

Dark brown 7.5YR 3/2 Brown 7.5YR 5/2

Anthropogenic gravelly sandy loam soil

Gravel (90%; arkosic sandstone and andesitic-to-weathered mafic igneous rock) loamy sand, water repellent, 0.7% Carbon (C).

Spolic anthroposol, very gravelly, sandy, very shallow

³Spolic technosol (Densic)

Site 6: brick fragments (0-2 cm)

110.6.2

Red 2.5YR 5/8 Light red 2.5YR 7/8

Anthropogenic brick fragment-rich soil

Gravel (90%), sandy, water repellent, weathered brick fragments (0.5-4 cm),1.2% C.

Urbic anthroposol, very gravelly, sandy, very shallow

³Urbic Ekranic technosol
(Transportic)

Site 7: rose garden bed (0-10 cm)

110.7.1

Black 10YR 2/1 Black 7.5YR 2.5/1

Anthropogenic, organic-rich sandy loam soil

Gravel (15% coarse river sand), loamy sand (25%), water repellent, 30% fine compost, 30% composted pine bark, 14 % C.

Hortic anthroposol non-gravelly, sandy, shallow

⁴Hortic anthrosol
(Escalic)

Site 8: Japanese garden bed (0-10 cm)

110.8.1

Dark reddish gray 2.5YR 3/1 Reddish gray 2.5YR 6/1

Anthropogenic, quartz-rich, gravelly, sandy soil

Gravel (90%: ~80% rounded quartz, 10% sub-rounded to angular dolerite;5% ironstone), loamy sand, water repellent, 3 % C.

Spolic anthroposol, very gravelly, sandy, very shallow

³Spolic technosol
(Grossartefactic, Transportic)

Site 9: south eastern boundary horizon 1 (5-0 cm)

110.9.1

Leaves not analysed for Munsell soil colour by naked eye

Natural organic-rich soil

Undecomposed Leaves (60%) and decomposed (40%)

Humose, mesotrophic, Brown Dermosol, non-gravelly, sandy, deep

⁵Eutric Cambisol (Humic)

Site 9: south eastern boundary horizon 2 (0-10 cm)

110.9.2

Very dark brown 10YR 2/2 Very dark brown 7.5YR 2.5/2

Natural loamy soil

Gravel (2%), loamy sand, water repellent, 23 % C.

As above

As above

Where:

1Munsell soil colour [29]: measured on the fine earth fraction (<2 mm).

2Special-purpose technical soil classification system [24], which uses plain English and places strong emphasis on being either an anthropogenic soil or natural soil, the soil texture (e.g. gravelly, sandy, sandy loam) and the presence of high quantities of organic carbon (>10%; organic-rich).

3Classification of technosols [19]: Connotation: soils dominated or strongly influenced by human-made material; from Greek technikos, skilfully made. They contain a significant amount of artefacts.

4Classification of Anthroposol [19]: Connotation: soils with prominent characteristics that result from human activities; from Greek anthropos, human being (e.g. such as addition of organic material and cultivation).

5Classification of natural soils: Connotation: soils with substantial soil formation such as Dermosols [18] or Cambisols [19].

Experimental design

Placing experiments: The method devised by Murray et al. [15,16,22] to simulate a lifeless or incapacitated clothed human body dragged across a soil surface, was adapted to test two transfer methods mimicking the placement of a clothed body on a soil surface. A glass Pyrex 3 qt/2.8 L dish was filled to >3 cm with bulk soil and placed on a non-slip mat. Experiments were conducted using both wet and dry soil. To mimic clothing seams, the 30 cm² fabric squares were sewn down the middle with a raised seam. Using the same method as Murray et al. [22], half of the cotton squares had a 1 cm diameter plastic button sewn onto them. White coloured fabric was chosen to enable easy detection of trace soil transferred in minute amounts.

Using placement method 1, a fabric square was secured to a 2 kg weight by a strong rubber-band. this simulated firm-fitting clothing worn by a human victim. In order to achieve reproducible and consistent results, the weighted fabric was placed on wet or dry soil in a glass baking dish and timed for 2 minutes (Figure 2). Great care was taken to minimise any movement of the fabric across the soil surface. The weighted fabric was then carefully lifted up and placed on a clean surface, in order to immediately photograph the soil transference pattern. The attached weight not only stabilised soil transfer patterns, but kept the surface to be photographed and photomicrographed flat during analysis.

Figure 2. Photograph (above) and cross-section of a weighted fabric square placed on soil material using placement method 1, during a two minute count Soil Transference Experiment (STE). The glass dish containing bulk soil was placed on a nonslip mat to prevent movement during each STE.

Placement method 2 simulated a clothed body wearing loose-fitting clothing. Randomly folded non-weighted fabric was placed on a wet or dry soil surface (Figure 3). Immediately, the 2 kg weight was gently placed on top and the placement timed for 2 minutes. The weight would then carefully be lifted off and the fabric square gently lifted and spread flat and soil-side-up on a clean bench for photographing with a digital camera.

Figure 3. Using placement method 2, loosely-folded fabric is first placed on a soil surface before a 2kg weight is placed on top and the 2 minute count commences.

These digital photographs were then uploaded to a computer with image processing software which had been manually programmed to convert its default RGB colour system to the Munsell soil colour system preferred by forensic soil scientists in the field [25-27]. Full details regarding the use of image processing software to identify the Munsell soil colour of trace soil evidence is discussed in Murray et al. [15-17]. This research focused primarily on the visual interpretation of trace soil patterns on clothing to identify the circumstances befalling a victim during an attack.

Numerical data on each trace soil pattern provided a scientific and objective analysis of trace soil patterns that could be used to confirm patterns identified by human eye. Image software was also programmed to gather data on the quantity and directionality of soil objects transferred. Directionality was used to better understand the soil transfer method and was graphed using quick and easily compared rose diagrams with GEOrient version 9.5.0 [28]. Due to limitations in the manual programming of this software, soil objects <100 μm were disregarded from analysis [15-17,22].

Results and discussion

Trace soil patterns recorded on fabric using the soil transfer method of ‘placing’

When a weighted fabric square was simply placed on soil, six transfer patterns were routinely identified using all soils tested (Table 2 and Figures 4-7). As hypothesised, previously documented soil transfer patterns that occurred when weighted fabric was dragged across a soil surface, were not seen in any of these soil transfer experiments [15-17,22]. The soil patterns not seen included soil ‘trails’ and elongated soil particles either embedded in fabric or aligned parallel with the direction of movement. Also missing was an accumulation of soil in front of buttons and raised seams, damage to fabric and scratches on buttons.

Table 2. Trace soil patterns identified on fabric using ‘placing’ as the transfer method.



Soil transfer pattern

Symbol used

Figure

Location on fabric

Contributing soil characteristic

1





Speckling of soil on fabric





red circle





Figure 4

Figure 5

Figure 8

sporadically where fabric had

made contact with soil surface



Marginally greater quantity of

wet soil objects transferred

(96% consistency) than dry (90%)

2



Fold and crease marks

on draped cloth (Method 2)

green circle



Figure 4

Figure 5

delineating folds or creases

on loosely draped cloth

100% consistency in all soils

both dry and wet

3

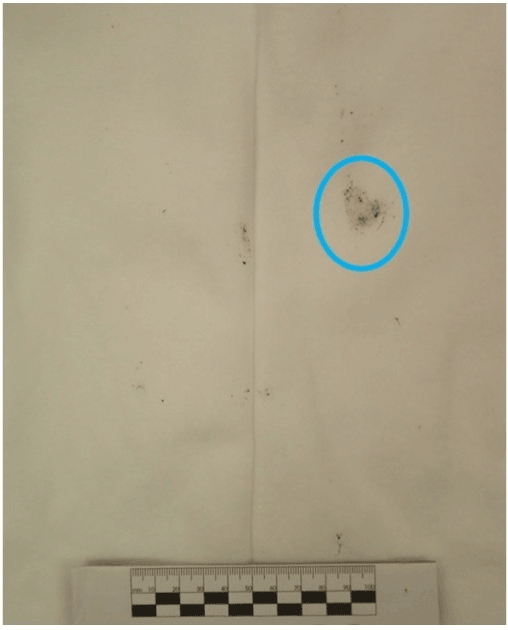

Soiled water stains



blue circle



Figure 5

Figure 6

sporadically where fabric had

made contact with soil surface

wet soil

(45% consistency)

4



 'Dusted' plastic buttons



orange circle



Figure 7



buttons sewn onto cotton fabric

(no other fabrics had buttons)

very dry soil

(55% consistency)

5



Muddy clumps on wet

shiny plastic buttons

yellow circle



Figure 7



buttons sewn onto cotton

fabric

wet soil

(30% consistency)

6





Minimal amount of soil

accumulated on raised

surfaces

_





Figure 6





raised middle seams





Marginally greater quantity of

wet soil objects transferred

(19% consistency) than dry (6%)

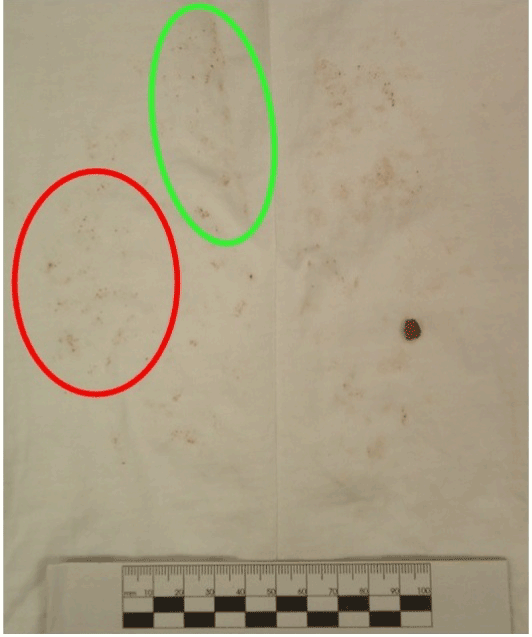

Figure 4aTrace soil patterns resulting from transfer method 2 that involved placing loosely draped weighted fabric for 2 minutes on a soil bed containing dry soil. Fabric tested: cotton. The difference soil moisture can make on resulting trace soil patterns is demonstrated by comparing the same fabric type placed on the same soil type; with the only difference being soil moisture content.

Figure 4bTrace soil patterns resulting from transfer method 2 that involved placing loosely draped weighted fabric for 2 minutes on a soil bed containing wet soil. Fabric tested: cotton.

Figure 4cTrace soil patterns resulting from transfer method 2 that involved placing loosely draped weighted fabric for 2 minutes on a soil bed containing dry soil. Fabric tested: nylon.

Figure 4dTrace soil patterns resulting from transfer method 2 that involved placing loosely draped weighted fabric for 2 minutes on a soil bed containing wet soil. Fabric tested: nylon.

Figure 5aTrace soil patterns using transfer method 2, when loosely draped weighted fabric is placed for 2 minutes on a soil bed containing dry soil. Fabric tested: polyester-cotton. When comparing Figures 5(A to D), soil moisture content appears to make a greater difference to resulting trace soil patterns than fabrics tested.

Figure 5bTrace soil patterns using transfer method 2, when loosely draped weighted fabric is placed for 2 minutes on a soil bed containing wet soil. Fabric tested: polyester-cotton.

Figure 5cTrace soil patterns using transfer method 2, when loosely draped weighted fabric is placed for 2 minutes on a soil bed containing dry soil. Fabric tested: polar fleece (polyester brushed both sides).

Figure 5dTrace soil patterns using transfer method 2, when loosely draped weighted fabric is placed for 2 minutes on a soil bed containing wet soil. Fabric tested: polar fleece (polyester brushed both sides).

Figure 6Wet trace soil from Site 2 horizon 1 UTas farm semi-dissolves and embeds in fabric fibres (cotton).

Figure 7aPhotomicrograph of plastic button sewn onto cotton fabric and placed on dry soil. Button is 1cm diameter. Orange circle = very fine clay-sized particles ‘dusted’ sporadically over button.

Figure 7bPhotomicrograph of plastic button sewn onto cotton fabric and placed on dry soil. Buttons 1cm diameter. Orange circle = very fine clay-sized particles ‘dusted’ sporadically over button.

Figure 7cPhotomicrograph of plastic button sewn onto cotton fabric and placed on wet soil. Button 1cm diameter. Yellow circle = wet clumps of soil particles persisting to button.

Figure 7dPhotomicrographs of plastic buttons sewn onto cotton fabric and placed on wet soil. Buttons 1cm diameter. Yellow circle = wet clumps of soil particles persisting to button.

Figure 8aPolar fleece fabric speckled with soil in a dry placement on site 9 natural mineral soil, RTBG. In Figures 8 (A to B), soil moisture content had a more consistent influence on resulting trace soil patterns than did the four common fabrics tested. Red circle = a patch of fabric randomly specked by soil.

Figure 8bPolar fleece fabric speckled with clumps of soil in a wet placement on site 9 natural mineral soil, RTBG.

Trace soil patterns transferred to fabric depended primarily on soil moisture content, soil mineralogy (e.g. smectite) and clay fraction (<2 um) content. Wet soil tended to transfer a higher abundance of trace soil particles to fabric than when soil was dry. There was one exception to this, soils with a sandy clay loam texture, which is discussed in greater detail in section 3.5 below. Clothing fabric type had no observable effect on resulting trace soil patterns.

Directionality

Using directional numerical data provided by image processing software, rose diagrams illustrated the directionality of wet and dry soil particles (≥2 pixels diameter) transferred onto clothing fabric (Figure 9). This methodology provided objective support to visual observations.

Figure 9Rose diagrams display the directionality of wet and dry soil objects transferred onto fabric during STEs using soil from UTas Farm Site 1 horizon 4 and site 2 surface horizon, Mt. Wellington site 4 horizon 5 and RTBG site 9 mineral rich soil. A scattered and random pattern, lacking strong directionality, was produced when four fabric types were placed on a soil surface.

By mapping the directionality of thousands of soil particles down to 100 μm diameter, rose diagrams consistently created a simple yet definitive pictorial record of soil transferred onto fabric during placing experiments. Each Rose diagram only took minutes to create.

In each of the soils tested in placing STEs, there was no obvious movement of soil seen across the fabric; as witnessed in dragging STEs from soil ‘trails’ [15-17,22]. Minimal to negligible soil was transferred to the weighted fabric; compared to the transfer method of dragging. This resulted in several instances when there was insufficient data to create a rose diagram or the directional data for a particular STE was so limited, it affected the rose diagram’s value. When dry soil was used, dry soil particles tended to remain as individual soil objects and not clump into aggregates. This lack of soil clumping or directional soil movement also helps explain the scattered random patterns depicted in each rose diagram.

Dry hard soils, such as soils with massive structures found at UTas Farm, produced minimal soil transference patterns in placing experiments. This was also the case in the dry gravel-rich soil of the RTBG site 8 Japanese garden composed of 90% white gravel. Natural soil site 9 surface horizon 1 of undecomposed leaves, with negligible mineral soil content, transferred minimal trace soil to fabric.

Rose diagrams recorded random and scattered trace soil patterns with no obvious directionality that was seen when the same four types of fabric squares were dragged across a wet or dry soil surface [22]. The strong directionality identified by image processing software from dragging experiments was consistently seen throughout all twenty soils; regardless of fabric used or each soil type’s differing mineralogy, grain size or amount of fine clay-sized soil particles. These initial experiments suggest that rose diagrams using image processing directional data can indicate whether trace soil objects were transferred to fabric by placing or dragging a simulated clothed human body on a soil surface; regardless of the four fabric types tested.

Quantity of soil objects transferred to clothing fabric and analysed by soil type

A standardised objectivity of soil pattern analysis was achieved using quantitative graphical presentation of computer analysis of the number of digital pixels, containing either individual or aggregate soil objects (Table 3 and Figure 10). The level of precision attained when analysing trace soil patterns on clothing fabric had not previously been possible via traditional identification by naked eye alone

Figure 10Quantity of soil transferred to fabric by placing weighted fabric on a soil surface; analysed by the total number of pixels in digital photographs that contained aggregate or individual soil objects. Image processing numerical data was subdivided first by location and then by soil moisture content [15,16].

Table 3. Summary of soil data documented using naked eye, XRD and NDIR analysis and image processing of the 20 soil types and trace soil objects transferred to clothing fabric; as provided by Murray et al. [22].

Locality

Centre for Australian Forensic Soil Science (CAFSS)

Munsell¹ soil colour <2 mm fraction

Dominant trace soil² Munsell colour

Ave. soil transferred (individual + aggregates) in pixels³



Weight % Clay content⁴ (Smectite)

% Organic content⁵

% Gravel content⁶

(Depth cm)







code







(wet) (dry)







(wet) (dry)







(wet) (dry)

High quantity

Moderate

Low



(H)

(M)

(L)

























Site 1: UTas farm

horizon 1

(0-10 cm)

110.1.1





Very dark brown 10YR 2/2

Dark grayish brown 10YR 4/2



Light gray 10YR 7/2

Light gray 10YR 7/2



34026

45481



(L)

(L)



5 ± 1





6.92





50





Site 1 horizon 2

(15-30 cm)



110.1.2





Very dark brown 10YR 2/2

Brown 10YR 5/3



Light gray 10YR 7/2

Light gray 10YR 7/2



20415

14212



(L)

(L)



13 ± 2





2.46





45





Site 1 horizon 3

(40-60 cm)



110.1.3





Strong brown 7.5YR 4/6

Strong brown 7.5YR 5/6



Light gray 10YR 7/2

Light gray 10YR 7/2



75087

3017



(L)

(L)



56 ± 5





0.92





90





Site 1 horizon 4

(60-80 cm)



110.1.4





Strong brown 7.5YR 5/6

Reddish yellow 7.5YR 6/6



Light gray 7.5YR 7/2

Light gray 10YR 7/2



16783

4820



(L)

(L)



59 ± 5





0.26





90





Site 1 horizon 5

(80-100 cm)



110.1.5





Dark brown 7.5YR 3/4

Reddish yellow 7.5YR 6/6



Light gray 10YR 7/2

Light gray 10YR 7/2



22959

8537



(L)

(L)



52 ± 5





0.19





40





Site 2: UTas farm

horizon 1

(0-17 cm)

110.2.1





Very dark brown 10YR 2/2

Grayish brown 10YR 5/2



Very dark brown 7.5YR 2.5/2

Llight gray 10YR 7/2



17521

20775



(L)

(L)



3 ± 1





2.61





35





Site 2 horizon 2

(10-34 cm)



110.2.2





Brown 10YR 4/3

Pale brown 10YR 6/3



Light gray 10YR 7/2

Light gray 10YR 7/2



63408

814



(L)

(L)



5 ± 2





1.14





95





Site 3: UTas farm

horizon 1 (0-10 cm)

110.3.1



Very dark gray 10YR 3/1

Dark grayish brown 10YR 4/2

Light gray 10YR 7/2

Light gray 10YR 7/2

57457

2638

(L)

(L)

41 ± 4



2.37



90



Site 3 horizon 2

(20-40 cm)

110.3.2



Yellowish brown 10YR 5/4

Grayish brown 10YR 5/2

Light gray 10YR 7/2

Light gray 10YR 7/2

21938

382

(L)

(L)

58 ± 5



0.84



97



Site 3 horizon 3

(40-70 cm)

110.3.3



Light yellowish brown 10YR 6/4

Light gray 10YR 7/2

Light gray 10YR 7/2

Light gray 10YR 7/2

24092

864

(L)

(L)

46 ± 4



3.54



90



Site 3 horizon 4

(70-110 cm)

110.3.4



Yellowish brown 10YR 5/4

Brown 10YR 5/3

Light gray 10YR 7/2

Light gray 10YR 7/2

28819

1049

(L)

(L)

64 ± 5



0.44



90



Site 4: Mount Wellington

horizon 1 (0-10 cm)

110.4.1



Very dark brown 10YR 2/2

Very dark grayish brown 10YR 3/2

Light gray 10YR 7/2

Light gray 10YR 7/2

30119

60244

(L)

(L)

7 ± 2



12.8



70



Site 4 horizon 3

(40-60 cm)

110.4.3



Strong brown 7.5YR 4/6

Brownish yellow 10YR 6/6

Light gray 10YR 7/2

Light gray 10YR 7/2

7571

139787

(L)

(L)

10 ± 2



0.96



70



Site 4 horizon 5

(110-140 cm)

110.4.5



Strong brown 7.5YR 4/6

Strong brown 7.5YR 5/6

Light gray 10YR 7/2

Light gray 10YR 7/2

26423

35937

(L)

(L)

5 ± 2



0.34



75



Site 5: RTBG rose

garden path

(0-10 cm)



110.5.1







Dark brown

7.5YR 3/2

Brown

7.5YR 5/2

Light gray

10YR 7/2

Light gray

10YR 7/2

22671



49842



(L)



(L)



19 ± 3







0.70







90







Site 6: RTBG brick fragments

(0-2 cm)

110.6.2





Red

2.5YR 5/8

Light red 2.5YR 7/8

Very dark brown

7.5YR 2.5/2

Light gray 10YR 7/2

100127



69957

(L)



(L)

Trace of Mullite





0.29





90





Site 7: RTBG rose garden bed



(0-10 cm)



110.7.1







Black

10YR 2/1

Black

7.5YR 2.5/1

Very dark brown

7.5YR 2.5/2

Very dark brown

7.5YR 2.5/2

1575421



304925



(H)



(L)



2 ± 1







14.0







15







Site 8: RTBG Japanese

garden bed

(0-10 cm)



110.8.1







Dark reddish gray

2.5YR 3/1

Reddish gray

2.5YR 6/1

Very dark brown

7.5YR 2.5/2

Very dark brown

7.5YR 2.5/2

11690



4643



(L)



(L)



2 ± 1







3.10







90







Site 9: RTBG

SE boundary

horizon 1 (5-0 cm

above surface)

110.9.1







Leaves

leaves





Very dark brown

7.5YR 2.5/2

Very dark brown

7.5YR 2.5/2

25563



16127



(L)



(L)



No XRD analysis







No NDIR analysis







Leaves







Site 9 horizon 2

(0-10 cm)





110.9.2







Very dark brown

10YR 2/2

Very dark brown

7.5YR 2.5/2

Very dark brown

7.5YR 2.5/2

Very dark brown

7.5YR 2.5/2

1565993



160684



(H)



(L)



20 ± 3







22.8







2







Where: 1Munsell Soil Colour [21]: measured by naked eye on the fine earth fraction (<2 mm).

2Munsell Soil Colour measured by image processing software from two digital photographs of trace soil on fabric.

3Average of two STEs tested using either wet or dry soil sample.

4XRD analysis of % weight clay (Smectite) content in homogenous bulk soil sample.

5NDIR analysis of organic content of homogenous bulk soil sample.

6Estimate by naked eye alone using method of McDonald and Isbell [30].

Soils were first grouped by location and then sub-grouped by soil moisture content. Numerical data was combined and averaged to produce graphs of aggregate and individual soil objects, transferred by one of two transfer methods of placing, from each soil sample to clothing fabric.

Soil objects covering > 0.5 million pixels were categorised as a low quantity of soil objects transferred to fabric. Soil objects covering 0.5 million to >1 million pixels were categorised within a moderate quantity of soil objects transferred. Soil objects covering 1 million pixels or higher were categorised as a high quantity of soil objects transferred [15-17,22].

Image processing numerical data enabled a thorough, detailed and objective interpretation of the relationships between soil types, clay minerals (smectite) and soil moisture content.

Compared to the quantity of soil objects transferred by the transfer method of dragging the same fabric types across the same 20 soils [22], the quantity of soil transferred by placing was in most cases so low as to indicate only that increased soil moisture tended to increase the quantity of soil objects transferred (Figure 11). This was the general trend across all soils tested, regardless of soil mineralogy (e.g. smectite) and clay content. The exception to this was soil with a sandy clay loam texture; namely natural soils from site 4: Mt. Wellington and Anthroposol site 5: rose garden path (Figure 10). Although site 5 was 90% gravel, the soil matrix had a sandy loam texture.

Figure 11Comparison of quantity of soil transferred to fabric using the soil transfer methods of placing and dragging weighted fabric across a soil surface. Quantity of trace soil transferred was analysed by number of pixels in digital photographs that contained individual or aggregate soil objects. Image processing numerical data was subdivided by location and soil moisture content [22].

Conclusions

In a controlled laboratory environment, 400 soil transference experiments (STEs) produced six transference patterns identified by naked eye and confirmed by simple light microscopy and image processing. The minimal quantities of trace soil transferred from only placing a simulated clothed body on a soil surface made it more difficult to discover a relationship between soil moisture, particle size, mineralogy and soil objects transferred. Dark organic loamy-sand textured soil transfer patterns enabled easiest recognition by naked eye against the white fabric. However, image processing was equally capable of recognising all soil objects, regardless of Munsell soil colour. With further software development, image processing could be programmed to identify trace soil objects on underlying fabrics of differing colours, patterns and textile weaves.

Image processing provided objective support to visual observations by showing:

  1. how the quantity of soil objects transferred is influenced by soil mineralogy and moisture content,
  2. percentage of aggregate and individual soil objects transferred,
  3. lack on soil object directionality when ‘placing’ is the soil transfer method,
  4. the unique ranges of Munsell soil colours of trace soil on fabric and
  5. the negligible influence the four fabric types tested had on trace soil patterns produced.



Acknowledgements

2021 Copyright OAT. All rights reserv

We would like to thank the following people:

  • The principal author’s sister, Cheryl Robins, for sewing all the fabric squares used in the experiments.
  • Associate Professor Ron Berry (Retired), CODES, School of Physical Sciences, The University of Tasmania, for providing invaluable technical expertise with operating image processing software.
  • Richie Woolley, Technical Officer, Mineral Resources Tasmania, for providing mineralogical phase identification by manually comparing the measured XRD patterns with a series of similarly-prepared standards of the more common minerals to enable semi-quantitative XRD analysis.
  • David Reid, Horticultural Coordinator, Royal Tasmanian Botanical Gardens, Hobart, for his invaluable historical knowledge regarding the establishment of the gardens and the heritage-listed convict-built Eardley Wilmot brick wall.
  • Garth Oliver, Project Manager, Soil carbon, TIAR, School of Land and Food, University of Tasmania, for his technical support in the lab.

References

  1. Fitzpatrick R, Raven M (2012) How pedology and mineralogy helped solve a double murder case: using forensics to inspire future generations of soil scientists. Soil Horiz 53: 14-29.
  2. Fitzpatrick R, Raven M, Forrester S (2009) A systematic approach to soil forensics: criminal case studies involving transference from crime scene to forensic evidence. In: Ritz K, Dawson L, Miller D, editors. Criminal and Environmental Soil Forensics. Netherlands: Springer Netherlands p. 105-127.
  3. Fitzpatrick R, Raven M (2013) Soils. In: Siegel J, Saukko P (eds.) Encyclopedia of Forensic Sciences. 2nded. Waltham, MA: Academic Press p. 206-212.
  4. Fitzpatrick R (2013) Soil: forensic analysis. In: Jamieson A, Moenssens A (eds.) Wiley Encyclopedia of Forensic Science. Chichester, West Sussex.
  5. Murray R (2011) Evidence from the Earth: Forensic Geology and Criminal Investigation. 2ndedn. Missoula, MT: Mountain Press Publishing.
  6. Pye K (2007) Geological and Soil Evidence: Forensic Applications. Boca Raton, FL: CRC Press.
  7. Ruffell A, McKinley J (2008) Geoforensics. Chichester: John Wiley & Sons, Ltd.
  8. Morgan R, Bull P (2007) Forensic geosciences and crime detection: Identification, interpretation and presentation in forensic geoscience. Minerva Medicolegale 127: 73-89.
  9. Bull PA, Parker A, Morgan RM (2006) The forensic analysis of soils and sediment taken from the cast of a footprint. Forensic Sci Int 162: 6-12. [Crossref]
  10. Martin B (2012) The State of Western Australia v. Rayney. [No 3]: WASC. p. 1-369.
  11. Martin B (2012) Judgement Summary: The State of Western Australia v. Rayney. [No 3]: WASC. p. 1-13.
  12. Fitzpatrick R, Raven M, Self P (2011) Detailed mineralogical characterization of small brick and soil fragments (<0.5mm diameter) by Synchrotron X-ray diffraction analyses for further forensic comparisons relating to operation Dargan. Centre for Australian Forensic Soil Science Restricted Client Report. p. 1-116.
  13. Fitzpatrick R, Raven M (2012) The State of Western Australia v. Lloyd Patrick Rayney Trial: Request for Supplementary Statement Relating to Extraction of Particulate Material from Bra. Centre for Australian Forensic Soil Science. p. 1-17.
  14. Raven M, Fitzpatrick R, Self P (2016) Trace evidence examination using laboratory and synchrotron X-ray diffraction techniques Paper no. 1131. 35th International Geological Congress, Symposium on Forensic Soil Science and Geology. Cape Town, South Aftrica.
  15. Murray K, Fitzpatrick R, Bottrill R, Berry R, Kobus H (2016) Soil transference patterns on bras: Image processing and laboratory dragging experiments. Forensic Sci Int 258: 88-100.
  16. Murray K, Fitzpatrick R, Bottrill R, Berry R, Woolley R, Doyle R, et al. (2015) Soil patterns on bra fabrics dragged across different soil surfaces using image analyses: laboratory dragging experiments.  Acid Sulfate Soils Report No ASSC_096 Adelaide: The University of Adelaide, Australia. p. 1-100.
  17. Murray K, Fitzpatrick R, Bottrill R, Kobus H (2017) Patterns produced when soil is transferred to bras by placing and dragging actions: the application of digital photography and image processing to support visible observations. Forensic Sci Int [In Press]
  18. Isbell R, National_Committee_on_Soils_and_Terrain (2016) The Australian Soil Classification. 2ndedn. Clayton, Victoria, Australia: CSIRO Publishing.
  19. IUSS_Working_Group_WRB (2014) World Reference Base for Soil Resources 2014.  International soil classification system for naming soils and creating legends for soil maps.  World Soil Resources Reports No 106. Rome: FAO. p. 1-181.
  20. Soil_Survey_Staff (2014) Keys to Soil Taxonomy. 12thedn. Washington, DC: United States Department of Agriculture, Natural Resources Conservation Service.
  21. Galbraith J (2012) Rationale for proposed changes to Soil Taxonomy concerning the International Committee for Anthropogenic Soils. Soil Horizons 2-6.
  22. Murray K, Fitzpatrick R, Bottrill R, Kobus H (2016) Soil transference patterns on clothing fabrics and plastic buttons: image processing and laboratory dragging experiments. Forensic Science and Criminology 2(1): 1-12.
  23. Department of Primary Industries P, Water and Environment (2015) LISTmap - Land Information System Tasmania. Tasmania: DPIPWE. http://maps.thelist.tas.gov.au/listmap/app/list/map.
  24. Fitzpatrick R (2013) Demands on soil classification and soil survey strategies: special-purpose soil classification systems for local practical use. In: Taha F, Abdelfattah M (eds.) Developments in Soil Classification, Land Use Planning and Policy Implications: Innovative Thinking of Soil Inventory for Land Use Planning and Management of Land Resources. Netherlands: Springer. p. 51-83.
  25. Jantzi S, Almirall J (2011) Characterization and forensic analysis of soil samples using laser-induced breakdown spectroscopy (LIBS). Anal Bioanal Chem 400: 3341-3351. [Crossref]
  26. Marumo Y (2003) Forensic examination of soil evidence. National Research Institute of Police Science 7: 95-111.
  27. Sugita R, Marumo Y (1996) Validity of color examination for forensic soil identification. Forensic Science Int 83: 201-210.
  28. Holcombe R (2011) GEOrient. Queensland, Australia: School of Earth Sciences, University of Queensland.
  29. Munsell_Color_Company. Munsell Soil Color (2009) Book. Michigan: Munsell Color X-rite.
  30. McDonald R, Isbell R (2009) Soil Profile. 3rdedn. Melbourne: CSIRO Publishing.

Article Type

Research Article

Publication history

Received date: January 28, 2017
Accepted date: February 15, 2017
Published date: February 17, 2017

Copyright

© 2017 Murray KR. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Citation

Murray KR, Fitzpatrick RW, Bottrill R, Kobus H (2017) An investigation of the pattern formed by soil transfer when clothing fabrics are placed on soil using visual examination and image processing analysis. Forensic Sci Criminol 2: DOI: 10.15761/FSC.1000110

Corresponding author

Kathleen R. Murray

School of Biological Sciences, The University of Adelaide, Adelaide, Australia

Figure 1. Soil map shows the three soil site areas of Cambridge, Hobart and Mount Wellington, Tasmania [23]; provided by Murray et al. [22].

Figure 2. Photograph (above) and cross-section of a weighted fabric square placed on soil material using placement method 1, during a two minute count Soil Transference Experiment (STE). The glass dish containing bulk soil was placed on a nonslip mat to prevent movement during each STE.

Figure 3. Using placement method 2, loosely-folded fabric is first placed on a soil surface before a 2kg weight is placed on top and the 2 minute count commences.

Figure 4aTrace soil patterns resulting from transfer method 2 that involved placing loosely draped weighted fabric for 2 minutes on a soil bed containing dry soil. Fabric tested: cotton. The difference soil moisture can make on resulting trace soil patterns is demonstrated by comparing the same fabric type placed on the same soil type; with the only difference being soil moisture content.

Figure 4bTrace soil patterns resulting from transfer method 2 that involved placing loosely draped weighted fabric for 2 minutes on a soil bed containing wet soil. Fabric tested: cotton.

Figure 4cTrace soil patterns resulting from transfer method 2 that involved placing loosely draped weighted fabric for 2 minutes on a soil bed containing dry soil. Fabric tested: nylon.

Figure 4dTrace soil patterns resulting from transfer method 2 that involved placing loosely draped weighted fabric for 2 minutes on a soil bed containing wet soil. Fabric tested: nylon.

Figure 5aTrace soil patterns using transfer method 2, when loosely draped weighted fabric is placed for 2 minutes on a soil bed containing dry soil. Fabric tested: polyester-cotton. When comparing Figures 5(A to D), soil moisture content appears to make a greater difference to resulting trace soil patterns than fabrics tested.

Figure 5bTrace soil patterns using transfer method 2, when loosely draped weighted fabric is placed for 2 minutes on a soil bed containing wet soil. Fabric tested: polyester-cotton.

Figure 5cTrace soil patterns using transfer method 2, when loosely draped weighted fabric is placed for 2 minutes on a soil bed containing dry soil. Fabric tested: polar fleece (polyester brushed both sides).

Figure 5dTrace soil patterns using transfer method 2, when loosely draped weighted fabric is placed for 2 minutes on a soil bed containing wet soil. Fabric tested: polar fleece (polyester brushed both sides).

Figure 6Wet trace soil from Site 2 horizon 1 UTas farm semi-dissolves and embeds in fabric fibres (cotton).

Figure 7aPhotomicrograph of plastic button sewn onto cotton fabric and placed on dry soil. Button is 1cm diameter. Orange circle = very fine clay-sized particles ‘dusted’ sporadically over button.

Figure 7bPhotomicrograph of plastic button sewn onto cotton fabric and placed on dry soil. Buttons 1cm diameter. Orange circle = very fine clay-sized particles ‘dusted’ sporadically over button.

Figure 7cPhotomicrograph of plastic button sewn onto cotton fabric and placed on wet soil. Button 1cm diameter. Yellow circle = wet clumps of soil particles persisting to button.

Figure 7dPhotomicrographs of plastic buttons sewn onto cotton fabric and placed on wet soil. Buttons 1cm diameter. Yellow circle = wet clumps of soil particles persisting to button.

Figure 8aPolar fleece fabric speckled with soil in a dry placement on site 9 natural mineral soil, RTBG. In Figures 8 (A to B), soil moisture content had a more consistent influence on resulting trace soil patterns than did the four common fabrics tested. Red circle = a patch of fabric randomly specked by soil.

Figure 8bPolar fleece fabric speckled with clumps of soil in a wet placement on site 9 natural mineral soil, RTBG.

Figure 9Rose diagrams display the directionality of wet and dry soil objects transferred onto fabric during STEs using soil from UTas Farm Site 1 horizon 4 and site 2 surface horizon, Mt. Wellington site 4 horizon 5 and RTBG site 9 mineral rich soil. A scattered and random pattern, lacking strong directionality, was produced when four fabric types were placed on a soil surface.

Figure 10Quantity of soil transferred to fabric by placing weighted fabric on a soil surface; analysed by the total number of pixels in digital photographs that contained aggregate or individual soil objects. Image processing numerical data was subdivided first by location and then by soil moisture content [15,16].

Figure 11Comparison of quantity of soil transferred to fabric using the soil transfer methods of placing and dragging weighted fabric across a soil surface. Quantity of trace soil transferred was analysed by number of pixels in digital photographs that contained individual or aggregate soil objects. Image processing numerical data was subdivided by location and soil moisture content [22].

Table 1. Soil morphology and Australian Soil Classification of soil materials [18] and approximate corresponding classifications for World Reference Base for Soil resources class [19] provided by Murray et al. [22].

Locality (depth cm)

Centre for Australian Forensic Soil Science (CAFSS) code

Munsell¹ Soil Colour fine <2 mm (wet) (dry)

Soil type²

Brief description

The Australian soil classification

The world reference base for soil resources (WRB)

Site 1: UTas farm horizon 1 (0-10 cm)

110.1.1

Very dark brown 10YR 2/2 Dark grayish brown 10YR 4/2

Duplex soil with nonrestricted clayey subsoil

Gravel (50%); clayey sand, water repellent, 6.92% Carbon (C).

Humose, Mesotrophic, Brown Chromosol; medium, moderately gravelly, loamy, clayey, moderate

Haplic, Luvisol (Clayic, Cutanic)

Site 1: UTas farm horizon 2 (15-30 cm)

110.1.2

Very dark brown 10YR 2/2 Brown 10YR 5/3

As above

Gravel (45%); sandy loam, water repellent, 2.46% Carbon (C).

As above

As above

Site 1: UTas farm horizon 3 (40-60 cm)

110.1.3

Strong brown 7.5YR 4/6 Strong brown 7.5YR 5/6

As above

Gravel (90%); heavy clay, non-water repellent, 0.92% Carbon (C).

As above

As above

Site 1: UTas farm horizon 4 (60-80 cm)

110.1.4

Strong brown 7.5YR 5/6 Reddish yellow 7.5YR 6/6

As above

Gravel (90%); medium-heavy clay, non-water repellent, 0.26% Carbon (C).

As above

As above

Site 1: UTas farm horizon 5 (80-100 cm)

110.1.5

Dark brown 7.5YR 3/4 Reddish yellow 7.5YR 6/6

As above

Gravel (40%); clayey sand, non-water repellent, 0.19% Carbon (C).

As above

As above

Site 2: UTas farm horizon 1 (0-17 cm)

110.2.1

Very dark brown 10YR 2/2 Grayish brown 10YR 5/2

Duplex soil with restricted sodic clayey subsoil

Gravel (35%); sandy loam, non-water repellent, 2.61% Carbon (C).

Vertic, Mottled-Mesonatric, Brown Sodosol; medium, moderately gravelly, loamy, clayey, deep

Vertic, Abruptic Solonetz (Albic, Hypernatric)

Site 2: UTas farm horizon 2 (17-34 cm)

110.2.2

Brown 10YR 4/3 Pale brown 10YR 6/3

As above

Gravel (95%); medium-heavy clay, non-water repellent, 1.14% Carbon (C).

As above

As above

Site 3: UTas farm horizon 1 (0-10 cm)

110.3.1

Very dark gray 10YR 3/1 Dark grayish brown 10YR 4/2

Poorly structured cracking clay

Gravel (90%); medium clay, water repellent, 2.37% Carbon (C).

Endocalcareous, Massive, Brown Vertosol; very gravelly, fine, very fine, deep

Calsic, Vertisol (Gilgaic, Gleyic)

Site 3: UTas farm horizon 2 (20-40 cm)

110.3.2

Yellowish brown 10YR 5/4 Grayish brown 10YR 4/2

As above

Gravel (97%); heavy clay, non-water repellent, 0.84% Carbon (C).

As above

As above

Site 3: UTas farm horizon 3 (40-70 cm)

110.3.3

Light yellowish brown 10YR 6/4 Light gray 10YR 7/2

As above

Gravel (90%); medium clay, non-water repellent, 3.54% Carbon (C).

As above

As above

Site 3: UTas farm horizon 4 (70-110 cm)

110.3.4

Yellowish brown 10YR 5/4 Brown 10YR 5/3

As above

Gravel (90%); heavy clay, non-water repellent, 0.44% Carbon (C).

As above

As above

Site 4: Mount Wellington horizon 1 (0-10 cm)

110.4.1

Very dark brown 10YR 2/2 Very dark grayish brown 10YR 3/2

Well structured clayey soil with boulders

Gravel (70%); sandy clay loam, water repellent, 12.8% Carbon (C).

Humose-Mottled, Placic, Brown Kandosol; medium, moderately gravelly, loamy, clayey, deep

 Xanthic, Ferretic, Ferralsol (Clayic, Colluvic)

Site 4: Mount Wellington horizon 3 (40-60 cm)

110.4.3

Strong brown 7.5YR 4/6 Brownish yellow 10YR 6/6

As above

Gravel (70%); sandy clay loam, non-water repellent, 0.96% Carbon (C).

As above

As above

Site 4: Mount Wellington horizon 5 (110-140 cm)

110.4.5

Strong brown 7.5YR 4/6 Strong brown 7.5YR 5/6

As above

Gravel (75%); sandy clay loam, non-water repellent, 0.34% Carbon (C).

As above

As above

 Site 5: rose garden path (0-10 cm)

110.5.1

Dark brown 7.5YR 3/2 Brown 7.5YR 5/2

Anthropogenic gravelly sandy loam soil

Gravel (90%; arkosic sandstone and andesitic-to-weathered mafic igneous rock) loamy sand, water repellent, 0.7% Carbon (C).

Spolic anthroposol, very gravelly, sandy, very shallow

³Spolic technosol (Densic)

Site 6: brick fragments (0-2 cm)

110.6.2

Red 2.5YR 5/8 Light red 2.5YR 7/8

Anthropogenic brick fragment-rich soil

Gravel (90%), sandy, water repellent, weathered brick fragments (0.5-4 cm),1.2% C.

Urbic anthroposol, very gravelly, sandy, very shallow

³Urbic Ekranic technosol
(Transportic)

Site 7: rose garden bed (0-10 cm)

110.7.1

Black 10YR 2/1 Black 7.5YR 2.5/1

Anthropogenic, organic-rich sandy loam soil

Gravel (15% coarse river sand), loamy sand (25%), water repellent, 30% fine compost, 30% composted pine bark, 14 % C.

Hortic anthroposol non-gravelly, sandy, shallow

⁴Hortic anthrosol
(Escalic)

Site 8: Japanese garden bed (0-10 cm)

110.8.1

Dark reddish gray 2.5YR 3/1 Reddish gray 2.5YR 6/1

Anthropogenic, quartz-rich, gravelly, sandy soil

Gravel (90%: ~80% rounded quartz, 10% sub-rounded to angular dolerite;5% ironstone), loamy sand, water repellent, 3 % C.

Spolic anthroposol, very gravelly, sandy, very shallow

³Spolic technosol
(Grossartefactic, Transportic)

Site 9: south eastern boundary horizon 1 (5-0 cm)

110.9.1

Leaves not analysed for Munsell soil colour by naked eye

Natural organic-rich soil

Undecomposed Leaves (60%) and decomposed (40%)

Humose, mesotrophic, Brown Dermosol, non-gravelly, sandy, deep

⁵Eutric Cambisol (Humic)

Site 9: south eastern boundary horizon 2 (0-10 cm)

110.9.2

Very dark brown 10YR 2/2 Very dark brown 7.5YR 2.5/2

Natural loamy soil

Gravel (2%), loamy sand, water repellent, 23 % C.

As above

As above

Where:

1Munsell soil colour [29]: measured on the fine earth fraction (<2 mm).

2Special-purpose technical soil classification system [24], which uses plain English and places strong emphasis on being either an anthropogenic soil or natural soil, the soil texture (e.g. gravelly, sandy, sandy loam) and the presence of high quantities of organic carbon (>10%; organic-rich).

3Classification of technosols [19]: Connotation: soils dominated or strongly influenced by human-made material; from Greek technikos, skilfully made. They contain a significant amount of artefacts.

4Classification of Anthroposol [19]: Connotation: soils with prominent characteristics that result from human activities; from Greek anthropos, human being (e.g. such as addition of organic material and cultivation).

5Classification of natural soils: Connotation: soils with substantial soil formation such as Dermosols [18] or Cambisols [19].

Table 2. Trace soil patterns identified on fabric using ‘placing’ as the transfer method.



Soil transfer pattern

Symbol used

Figure

Location on fabric

Contributing soil characteristic

1





Speckling of soil on fabric





red circle





Figure 4

Figure 5

Figure 8

sporadically where fabric had

made contact with soil surface



Marginally greater quantity of

wet soil objects transferred

(96% consistency) than dry (90%)

2



Fold and crease marks

on draped cloth (Method 2)

green circle



Figure 4

Figure 5

delineating folds or creases

on loosely draped cloth

100% consistency in all soils

both dry and wet

3



Soiled water stains



blue circle



Figure 5

Figure 6

sporadically where fabric had

made contact with soil surface

wet soil

(45% consistency)

4



 'Dusted' plastic buttons



orange circle



Figure 7



buttons sewn onto cotton fabric

(no other fabrics had buttons)

very dry soil

(55% consistency)

5



Muddy clumps on wet

shiny plastic buttons

yellow circle



Figure 7



buttons sewn onto cotton

fabric

wet soil

(30% consistency)

6





Minimal amount of soil

accumulated on raised

surfaces

_





Figure 6





raised middle seams





Marginally greater quantity of

wet soil objects transferred

(19% consistency) than dry (6%)

Table 3. Summary of soil data documented using naked eye, XRD and NDIR analysis and image processing of the 20 soil types and trace soil objects transferred to clothing fabric; as provided by Murray et al. [22].

Locality

Centre for Australian Forensic Soil Science (CAFSS)

Munsell¹ soil colour <2 mm fraction

Dominant trace soil² Munsell colour

Ave. soil transferred (individual + aggregates) in pixels³



Weight % Clay content⁴ (Smectite)

% Organic content⁵

% Gravel content⁶

(Depth cm)







code







(wet) (dry)







(wet) (dry)







(wet) (dry)

High quantity

Moderate

Low



(H)

(M)

(L)

























Site 1: UTas farm

horizon 1

(0-10 cm)

110.1.1





Very dark brown 10YR 2/2

Dark grayish brown 10YR 4/2



Light gray 10YR 7/2

Light gray 10YR 7/2



34026

45481



(L)

(L)



5 ± 1





6.92





50





Site 1 horizon 2

(15-30 cm)



110.1.2





Very dark brown 10YR 2/2

Brown 10YR 5/3



Light gray 10YR 7/2

Light gray 10YR 7/2



20415

14212



(L)

(L)



13 ± 2





2.46





45





Site 1 horizon 3

(40-60 cm)



110.1.3





Strong brown 7.5YR 4/6

Strong brown 7.5YR 5/6



Light gray 10YR 7/2

Light gray 10YR 7/2



75087

3017



(L)

(L)



56 ± 5





0.92





90





Site 1 horizon 4

(60-80 cm)



110.1.4





Strong brown 7.5YR 5/6

Reddish yellow 7.5YR 6/6



Light gray 7.5YR 7/2

Light gray 10YR 7/2



16783

4820



(L)

(L)



59 ± 5





0.26





90





Site 1 horizon 5

(80-100 cm)



110.1.5





Dark brown 7.5YR 3/4

Reddish yellow 7.5YR 6/6



Light gray 10YR 7/2

Light gray 10YR 7/2



22959

8537



(L)

(L)



52 ± 5





0.19





40





Site 2: UTas farm

horizon 1

(0-17 cm)

110.2.1





Very dark brown 10YR 2/2

Grayish brown 10YR 5/2



Very dark brown 7.5YR 2.5/2

Llight gray 10YR 7/2



17521

20775



(L)

(L)



3 ± 1





2.61





35





Site 2 horizon 2

(10-34 cm)



110.2.2





Brown 10YR 4/3

Pale brown 10YR 6/3



Light gray 10YR 7/2

Light gray 10YR 7/2



63408

814



(L)

(L)



5 ± 2





1.14





95





Site 3: UTas farm

horizon 1 (0-10 cm)

110.3.1



Very dark gray 10YR 3/1

Dark grayish brown 10YR 4/2

Light gray 10YR 7/2

Light gray 10YR 7/2

57457

2638

(L)

(L)

41 ± 4



2.37



90



Site 3 horizon 2

(20-40 cm)

110.3.2



Yellowish brown 10YR 5/4

Grayish brown 10YR 5/2

Light gray 10YR 7/2

Light gray 10YR 7/2

21938

382

(L)

(L)

58 ± 5



0.84



97



Site 3 horizon 3

(40-70 cm)

110.3.3



Light yellowish brown 10YR 6/4

Light gray 10YR 7/2

Light gray 10YR 7/2

Light gray 10YR 7/2

24092

864

(L)

(L)

46 ± 4



3.54



90



Site 3 horizon 4

(70-110 cm)

110.3.4



Yellowish brown 10YR 5/4

Brown 10YR 5/3

Light gray 10YR 7/2

Light gray 10YR 7/2

28819

1049

(L)

(L)

64 ± 5



0.44



90



Site 4: Mount Wellington

horizon 1 (0-10 cm)

110.4.1



Very dark brown 10YR 2/2

Very dark grayish brown 10YR 3/2

Light gray 10YR 7/2

Light gray 10YR 7/2

30119

60244

(L)

(L)

7 ± 2



12.8



70



Site 4 horizon 3

(40-60 cm)

110.4.3



Strong brown 7.5YR 4/6

Brownish yellow 10YR 6/6

Light gray 10YR 7/2

Light gray 10YR 7/2

7571

139787

(L)

(L)

10 ± 2



0.96



70



Site 4 horizon 5

(110-140 cm)

110.4.5



Strong brown 7.5YR 4/6

Strong brown 7.5YR 5/6

Light gray 10YR 7/2

Light gray 10YR 7/2

26423

35937

(L)

(L)

5 ± 2



0.34



75



Site 5: RTBG rose

garden path

(0-10 cm)



110.5.1







Dark brown

7.5YR 3/2

Brown

7.5YR 5/2

Light gray

10YR 7/2

Light gray

10YR 7/2

22671



49842



(L)



(L)



19 ± 3







0.70







90







Site 6: RTBG brick fragments

(0-2 cm)

110.6.2





Red

2.5YR 5/8

Light red 2.5YR 7/8

Very dark brown

7.5YR 2.5/2

Light gray 10YR 7/2

100127



69957

(L)



(L)

Trace of Mullite





0.29





90





Site 7: RTBG rose garden bed



(0-10 cm)



110.7.1







Black

10YR 2/1

Black

7.5YR 2.5/1

Very dark brown

7.5YR 2.5/2

Very dark brown

7.5YR 2.5/2

1575421



304925



(H)



(L)



2 ± 1







14.0







15







Site 8: RTBG Japanese

garden bed

(0-10 cm)



110.8.1







Dark reddish gray

2.5YR 3/1

Reddish gray

2.5YR 6/1

Very dark brown

7.5YR 2.5/2

Very dark brown

7.5YR 2.5/2

11690



4643



(L)



(L)



2 ± 1







3.10







90







Site 9: RTBG

SE boundary

horizon 1 (5-0 cm

above surface)

110.9.1







Leaves

leaves





Very dark brown

7.5YR 2.5/2

Very dark brown

7.5YR 2.5/2

25563



16127



(L)



(L)



No XRD analysis







No NDIR analysis







Leaves







Site 9 horizon 2

(0-10 cm)





110.9.2







Very dark brown

10YR 2/2

Very dark brown

7.5YR 2.5/2

Very dark brown

7.5YR 2.5/2

Very dark brown

7.5YR 2.5/2

1565993



160684



(H)



(L)



20 ± 3







22.8







2







Where: 1Munsell Soil Colour [21]: measured by naked eye on the fine earth fraction (<2 mm).

2Munsell Soil Colour measured by image processing software from two digital photographs of trace soil on fabric.

3Average of two STEs tested using either wet or dry soil sample.

4XRD analysis of % weight clay (Smectite) content in homogenous bulk soil sample.

5NDIR analysis of organic content of homogenous bulk soil sample.

6Estimate by naked eye alone using method of McDonald and Isbell [30].
