Here we report a case of technological innovation: using MRI to determine surgical strategy. Here is a 47-year-old man who underwent MRI diagnostic and subsequent surgical treatment of the aortic aneurysm. MRI made it possible to determine the distal resection edge. The patient`s postoperative course was unremarkable.
MRI, magnetic resonance imaging, thoracic aneurism, aortic wall
Patients with a thoracic aneurysm should be evaluated for prompt surgical intervention unless life expectancy from comorbid conditions is limited or quality of life is substantially impaired. According to the most recent guidelines, the examination includes computed tomographic imaging or magnetic resonance imaging for diameter measurements. Here we report a new and unique MRI application to use in patients with a thoracic aneurism, which affects surgical strategy choice.
Here is a 47-year-old man who underwent MRI diagnostic and subsequent surgical treatment of an aortic aneurysm. It is known from the anamnesis that he has no aggravating factors or chronic disease.
Aneurysms of the ascending aorta are always a challenge for physicians [1,2]. In the examination, echocardiography revealed dilatation of the ascending aorta up to 5.5 cm without aortic regurgitation.
The patient underwent ECG- synchronized MRI examination of the aorta and heart. The study was performed on MRI 1.5T with a specialized cardiac coil [3].
We used T2, T1 weighted scans without and then with T1 weighted scan contrast enhancement. During MRI, we performed contrast enhancement angiography (Figure 1). The maximum diameter of the ascending aorta was 5.4 cm, the distance between proximal and caudal aneurismal edge was 9 cm. The diameter of the aorta before the orifice of the brachiocephalic trunk was up to 3.4 cm, between the orifices of the left common carotid and subclavian arteries - up to 2.4 cm, in the descending part - up to 2.3 cm. The distance from the edge of the brachiocephalic trunk to the cranial aneurismal edge was 5.5cm.

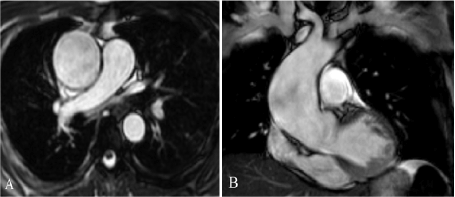

Figure 1. Steady-state free-precession (SSFP) imaging oriented axially (A) and in the coronal plane (B)
As part of the study, we performed sequences for aortic wall examination.
To assess the aortic wall's elasticity and contractility, we used a native steady-state free-precession (SSFP) scan mode in the axial and coronary planes (Figure 2).

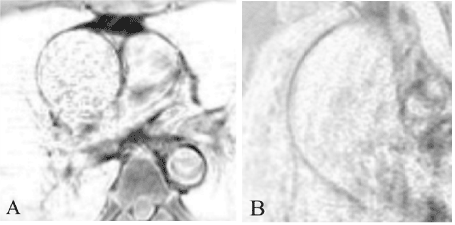

Figure 2. T1-SE (A) axially (in the middle third of the aortic aneurysm) and T1-SPIR-black blood (B) in the oblique plane. Thinned aortic wall, more defined in the central part
In the cine-SSFP view, we were able to clearly visualize the aortic wall's movement during the cardio cycle and blood flow direction. The QFlow sequence can be used to quantify the pulse wave velocity in an aneurysm or if aortic valve function is required. To examine the ascending aorta wall's thickness and vascularization, T1-SE-GRE in the axial plane, T1- fat-selective radiofrequency pulse and spoiler-black-blood (Figure 3), and T2- fat-selective radiofrequency pulse and spoiler-black-blood in the axial and oblique planes were performed.
Figure 3. MR-contrast enhancement angiography, arterial phase, breath-hold, oblique plane, 3D reconstruction of the aorta
According to the MRI conclusion, the patient has an enlarged ascending aorta from the root for up to 9 cm, with a maximum diameter of up to 5.5 cm. The patient needs surgery [4,5]. The wall in the aneurysm is evenly thinned, more defined in the middle part, the pulsation is reduced, with signs of dyskinesia, from the edge of the aneurysm to the orifice of the brachiocephalic trunk – the aortic wall is intact (Figure 4) within no more than 3 cm, the aortic diameter at this level is no more than 3.5 cm. Additionally, the patient has a bicuspid aortic valve. Dissection, thickening, and hypervascularization of the thoracic aorta wall and the proximal parts of its main branches were not revealed. The orifice of the main branches was typical anatomy.
Figure 4. T1-SPIR-BB imaging, axial plane (A) immediately after distal aneurysm edge of ascending aorta; oblique plane (B) before orifice of the brachiocephalic trunk. The intact thickness of the aortic wall (arrows)
Initially, during the existing strategy, it was planned to apply a clamp directly in front of the brachiocephalic trunk's orifice, but, taking into account the MRI data, the surgical approach was adjusted. Considering the spread of the lesion of the aortic wall to the arcus distal to the aneurysm, it was decided to perform the intervention under conditions of circulatory arrest and antegrade unilateral cerebral perfusion. It is important that in case of resection and the pathology altered aortic wall, complications can be expected in the early and the late postoperative period. In this case, the patient underwent supracoronary prosthesis of the ascending part and the aortic arch with the formation of a distal anastomosis of the "half-arc" type.
After surgical treatment, a CT angiographic of the thoracic aorta was performed (Figure 5). On postoperative scans, the diameter of the contrasting lumen of the aorta was not expanded. There were no endolics.
Figure 5. CT angiography of the thoracic aorta after surgical treatment
When comparing the MRI data with the histological examination results of intraoperative biopsy (resected aortic wall), the correspondence of the revealed changes in the aortic wall was noted. Macroscopically, the resected aorta's wall thickness was found in distal and proximal edge 2.0-3.0 mm, in the middle part (including part of the distal aneurismal edge) 1.0-1.5 mm.
Microscopically, in sections from the proximal and distal parts of the aortic aneurysm and 2 cm from the distal resection edge: widespread destruction in the middle layer, mucoid swelling of elastic fibres, smoothing of the folds of elastic membranes were found. In some areas, closer to the adventitia, there are moderate scattered perivascular lymphoid infiltrations, part of the aortic wall's vessels with obliteration of the lumens. Under the intima, there are focal accumulations of macrophages with foamy cytoplasm not protruding above the surface. (Figures 6,7,8).
Figure 6 (A, B). Proximal part of aneurism. Destruction, mucoid swelling elastic fibers, smoothing folds of elastic membranes. Scattered perivascular lymphoid infiltrates. Magnification x160. Hematoxylin-eosin stain
Figure 7. Medium part of aneurism. Destruction, mucoid swelling elastic fibers, smoothing folds of elastic membranes. Scattered perivascular lymphoid infiltrates. Magnification x160. Hematoxylin-eosin stain
Figure 8. The distal part of the resected aortic wall. Destruction, mucoid swelling elastic fibers, smoothing folds of elastic membranes. Magnification x 160. Hematoxylin-eosin stain
Histopathological diagnosis: nonspecific secondary vasculitis of low activity, degradation of the aorta's elastic membranes' middle layer. Aneurysm of the ascending aorta. Atherosclerosis of the aorta, stage of lipid spots.
Unlike CT, MRI enables examining the structure and mechanical properties of an aortal wall and measurement of the diameter. In this case, an aortic wall's MRI examination made it possible to choose the optimal surgical approach.
We have no conflict of interest to declare.
The authors received no specific funding for this work.
