The Dutch national ERCP quality registration using self-assessment does not correlate with clinical ERCP outcome

Lennard PL Gilissen

Department of Gastroenterology and Hepatology, Catharina Hospital, Eindhoven, the Netherlands

E-mail : bhuvaneswari.bibleraaj@uhsm.nhs.uk

Sigrid Meijer

Department of Gastroenterology and Hepatology, Catharina Hospital, Eindhoven, the Netherlands

Hajo Flink

Department of Gastroenterology and Hepatology, Catharina Hospital, Eindhoven, the Netherlands

Pieter Friederich

Department of Gastroenterology and Hepatology, Catharina Hospital, Eindhoven, the Netherlands

Jos Ramaker

Department of Gastroenterology and Hepatology, Elkerliek Hospital, Helmond, the Netherlands

Erik Schoon

Department of Gastroenterology and Hepatology, Catharina Hospital, Eindhoven, the Netherlands

Arnold Stronkhorst

Department of Gastroenterology and Hepatology, Catharina Hospital, Eindhoven, the Netherlands

DOI: 10.15761/TiM.1000239

Article
Article Info
Author Info
Figures & Data

Abstract

Background: Quality measurement of endoscopic procedures is an actual and important subject. In the Netherlands endoscopists are obligated to register their Endoscopic Retrograde Cholangiopancreatography (ERCP) performances in a National ERCP quality registration (NEQR). NEQR is a self-assessment that evaluates ERCP quality and volume per centre and endoscopist, but complications and outcome of the procedure are both not registered in NEQR. The aim of this study is to examine whether NEQR correlates with objective post-ERCP clinical outcome in a tertiary referral centre.

Material and methods: A retrospective cohort study of all ERCPs performed at a tertiary referral centre in 2016. Correlations between NEQR self-assessments and post-ERCP complications and mortality were measured.

Results: 333 procedures were performed, of which 254 were registered in the NEQR (76.3%). No significant correlations were found between the subjective self-assessment and objective post-ERCP outcomes. Of all 333 procedures the total post-ERCP complication rate was 13.5% and the ERCP-related 30-day mortality rate was 0.6%.

Conclusions: The currently used NEQR does not correlate with post-procedural clinical outcomes. Clinical outcome measures in a 30-day post-ERCP period, including complications, should be implemented to improve the usefulness of this specific quality registration.

Introduction

Quality measurement of endoscopic procedures is of broad and current interests. Self-assessment tools have been developed for endoscopic procedures eg. colonoscopy and ERCP. A few studies evaluated these self-assessments for colonoscopy, but outcomes were neither unequivocal nor correlated with the post endoscopy complications [1-3]. A recent study tried to objectify the performance of ERCP by using an algorithm, which showed variation in value among the endoscopists with a regression to the mean [4]. The American Society of Gastrointestinal Endoscopy (ASGE) and European Society of Gastrointestinal Endoscopy (ESGE) have published several guidelines with quality indicators for endoscopic procedures, the newest quality indicators published by the ESGE are from 2018 [5,6]. These publications recommend to focus mostly on quality indicators related to outcome measures and the outcome measures themselves, such as cannulation rate, success of stone extraction and stent placement and rates of post-ERCP pancreatitis and adequate antibiotic prophylaxis before ERCP. According to the ASGE publication other indicators that monitor post-ERCP complications, such as perforation, bleeding, cholangitis, cardiopulmonary events, repeat ERCP and ERCP-related mortality should also be registered.

The Dutch Association of Gastroenterologists monitors current quality of ERCPs performed in the Netherlands. In near future the quality and/or volume criteria per centre as well as the individual endoscopist will determine whether ERCP may be performed [7,8]. In 2012 an ERCP registration pilot started to investigate the quality using the Rotterdam Assessment Form for ERCP (RAF-E). Endoscopists participated in this registration on a voluntary basis. Ekkelenkamp et al. published the prospective nationwide evaluation of this pilot ERCP registration in 2014[9]. The RAF-E is based on the quality indicators for ERCP developed by the ASGE in 2006 [10]. The RAF-E contains both objective and subjective elements. The objective part contains pre-procedural indicators; in the subjective part the endoscopists grade their performance and intra-procedural indicators using a Visual Analogue Scale (VAS) [11]. Ekkelenkamp concluded that the RAF-E registry is a valuable tool to evaluate ERCP outcome [9].

Since January 1st, 2016 Dutch endoscopists are obligated to register their ERCP results in a national database using the National ERCP Quality Registration (NEQR), which includes the RAF-E (Table 1) [7,8]. The Dutch National Health Committee monitors these results annually. The NEQR, together with the national complication database should assure national quality of ERCPs. However, these two separate registrations are not linked, thus the NEQR does not take complications into account. We believe this is an important missing link in the follow up of local and national ERCP quality.

Table 1. The Dutch National ERCP Quality Registration form (extracted from website https://portfolio.vrest.com and translated to English)

Items in the NEQR

Example from daily practice

Date of ERCP

Patient ID

Endoscopist

May 1. 2020

0123456789

Dr. L. Gilissen

General information

   ASA classification (1 / 2 / 3 / 4 / 5)

ASA2

Context of ERCP

Procedural intention (eg stone removal, stent insertion/renewal/removal, pancreatic intervention)

Complete stone removal common bile duct

Virginal papilla maior? (yes / no)

yes

Last ERCP unsuccessful? (yes / no / not applicable)

Not applicable

Schutz classification (1, 2, 3)

2 (stone > 10 mm)

Information about intervention

Papilla reached (yes / no)

yes

Choledochal duct cannulation (yes / no / partially)

yes

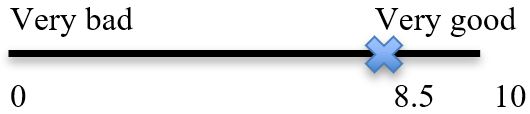

Choledochal duct cannulation on visual analogue scale

Unintentional pancreatic duct cannulation (yes / no / not applicable)

Not and no contrast

Papillotomy (not performed / yes / partially / no)

successful

Papillotomy on visual analogue scale

Precut papillotomy (not performed / yes / partially / no)

Not performed

Complete stone clearance (not performed / yes / partially / no)

yes

Stone clearance on visual analogue scale

Succeeded in procedural intention? (yes / no)

yes

The primary outcome of this study was to examine the correlation between the subjective national quality ERCP registration (RAF-E) and the objective post-ERCP clinical outcomes in a tertiary referral centre.

Materials and methods

Study design

This retrospective cohort study was conducted with approval of the Medical Ethical Board of the Catharina Hospital Eindhoven. Data for this study were collected retrospectively from the national ERCP quality registration (NEQR) and medical records from the hospital electronic medical system. The study population consisted of all the patients that underwent ERCP between January 1. 2016 and January 1. 2017 in this tertiary referral centre for ERCP in the Netherlands.

The ERCPs were performed in the angiography room of the radiology department with endoscopic facilities by one of 5 expert endoscopists and 1 trainee guided by one of the experts present in the room. All endoscopists performed over 750 ERCP’s in their career. Two nurses assisted the endoscopists. Patients were in a semi-prone position. A sedation specialist administered propofol sedation during regular hours. The propofol dosage was based on the weight of the patient, induction was one milligram per kilogram and maintenance pump dosage was half of the weight of the patient in milligram per hour. In case of pain during ERCP, rapifen 0.25 milligram or ketanest 5 to 10 mg was added. Outside regular hours traditional sedation with midazolam 5 milligram i.v. and/or fentanyl 50 to 100 microgram i.v. was administered and regulated by the endoscopist. In case of disturbing peristalsis intravenous boluses of 10 milligram buscopan were used to mute bowel peristalsis, if allowed by hemodynamics. All patients received rectal diclofenac 100 mg pre-procedural (pancreatitis-prophylaxis), unless there was a contra-indication for the use of diclofenac such as allergy or renal dysfunction.

To collect data, all patients were retrospectively traced in the hospital computer system with the unique procedural code that is used for ERCP.

Digital medical records were reviewed, including patient characteristics, ERCP report, outcome, complications, and mortality. From the nationwide ERCP quality registration, pre- and intra-procedural quality indicators were collected.

A complication was defined as an adverse event occurring during the procedure or in the 30 day period after ERCP, if this required unplanned hospital admission or prolongation of a planned admission [12]. Complications such as pancreatitis, bleeding, infection and perforation were classified according to standardised criteria proposed by Cotton et al. [13]. Cholecystitis was defined as an emergency cholecystectomy after ERCP with no prior clinical signs of cholecystitis [14]. Cardiopulmonary complications included hypercapnia, hypoxia, apnoea, arrhythmias, blood pressure changes, silent myocardial ischemia and respiratory failure or acute respiratory distress syndrome from aspiration pneumonia or as a late sequel of complicated pancreatitis [15]. Mortality in 30 days was evaluated and graded as ERCP related or not. The results of the self-assessment for common bile duct cannulation, pancreatic duct cannulation, sphincterotomy, precut papillotomy, stone extraction, stent placement, and pancreatic duct intervention in the quality registration ERCP were correlated with complications and mortality, registered in the medical file of the patients.

Statistical analysis

Data analysis was performed using SPSS Statistics 21 and 24 (IBM Corporation, Armonk, New York, USA). Data were presented as frequencies of categorical variables, and as mean ± standard deviation for continuous variables. Normal distribution was tested for continuous variables. For correlations Spearman’s rank correlation coefficient was used to compare variables. A p value of <0.05 was considered significant.

Results

In 2016, 333 ERCPs were performed in our centre, of which 254 were registered in the national quality registration (76.3%). These were performed by 5 expert endoscopists and 1 trainee guided by an expert, with a median of 61 ERCP’s per endoscopist/year (range 13 – 108), the results of the trainee were registered by the supervisor.

Patient characteristics are presented in Table 2. Mean patient age was 66.8 years, 55.6% were women. The ASA score distribution for grade 1, 2, 3, and 4 was respectively 32.4%, 48.6%, 18.3%, and 0.6%. The Schutz’ degree of ERCP difficulty grade 1 was the most common (68.9%), followed by grade 2 (17.7%) and grade 3 (13.4%). The main intention of the procedure was complete stone extraction from the common bile duct (n=202, 60.7%) followed by metal stent placement for stenosis in the common bile duct (n=56, 16.8%) and endoprosthesis placement for stenosis in the common bile duct (n=22, 6.6%). Patients were sedated with propofol in 96,4%, with midazolam and/or fentanyl in 2.4% and had general anaesthesia in 1.2%. In 61.6% of the procedures a sphincterotomy had not been performed earlier (virginal papilla).

Table 2. Characteristics of study population

Total procedures

NEQR

N = 333

%

N=254

%

Age

Mean

66.8±16

-

66.7±17

-

Gender

Female

Male

185

148

55.6

44.4

141

113

55.5

44.5

ASA-score

I

II

III

IV

108

162

61

2

32.4

48.6

18.3

0.6

93

118

42

1

36.6

46.5

16.5

0.4

Schutz’ degree of difficulty *

Grade 1

Grade 2

Grade 3

175

45

34

68.9

17.7

13.4

Intention

Complete stone extraction CBD

Metal stent – stenosis CBD

Endoprosthesis – stenosis CBD

Stent dysfunction

Endoprosthesis bile leakage

Therapy chronic pancreatitis

Suspected sphincter of Oddi dyskinesia

Pancreas divisum

Others

202

56

22

17

10

7

2

1

16

60.7

16.8

6.6

5.1

3.0

2.1

0.6

0.3

4.8

158

50

13

11

7

2

2

1

10

62.2

19.7

5.1

4.3

2.8

0.8

0.8

0.4

3.9

Sedation

Propofol sedation

Traditional sedation (midazolam/fentanyl)

General anaesthesia

321

8

4

96.4

2.4

1.2

254

6

3

96.5

2.4

1.2

Virginal papilla

Yes

No

205

128

61.6

38.4

157

97

61.8

38.2

NEQR, National ERCP Quality Registration; N, number of valid cases; ASA, American Society of Anaesthesiologist; CBD, common bile duct; PD, pancreatic duct.

*Only measured in the NEQR

Complications, repeat ERCP and mortality

In this study the most common complication of ERCP was cholangitis (4.8%), followed by pancreatitis (4.2%), cardiopulmonary complications (2.1%), bleeding (1.8%), perforation (1.5%) and cholecystitis (0.09%). Mortality was seen in two patients (0.6%), caused by a post ERCP perforation and post-ERCP cardiopulmonary complications. Table 3 shows post-ERCP complication rates and mortality for all procedures (N=333), procedures registered in the quality registration (N=254) and procedures not registered in the quality registration (N=79) compared with rates found in recent pro- and retrospective studies [14,16-31].

Table 3. Frequencies and percentages of post-ERCP complications

Total procedures (N=333)

Procedures registered in NEQR(N=254)

Procedures not registered in NEQR (N=79)

Literature

Frequency

Percent

Frequency

Percent

Frequency

Percent

Percent (ref)

Pancreatitis

14

4.2

13

5.1

1

1.3

1.6-4.516-25

Cholangitis

16

4.8

15

5.9

1

1.3

0.8-5.014,16-19,21,22,25,26

Bleeding

6

1.8

5

2.0

1

1.3

0.3-2.916,17,20,23,25

Perforation

5

1.5

5

2.0

0

0

0.1-1.014,16-20,22,25

Cholecystitis

3

0.9

2

0.8

1

1.3

0.2-0.527-29

Liver abscess

0

-

0

-

0

-

0.129-30

Cardiopulmonary complications

7

2.1

3

1.2

4

5.0

0.1-2.419,21,24,26

Total complications

45

13.5

37

14.6

8

10.1

4.0-11.614,16-25,31

ERCP related mortality

2

0.6

1

0.4

1

1.3

0.2-1.214,17-19,24

N: Number of valid cases; NEQR: National ERCP quality registration; ERCP: Endoscopic retrograde pancreaticography; ref: References

Procedural outcome in the NEQR

Table 4 shows the procedural success of the endoscopists in our hospital, the national procedural success and the goals formulated by the Dutch Society of Gastroenterology, ASGE and ESGE (4,5,6). The papilla was reached in 98.8% (251 procedures). The procedural intention was accomplished in 89.0%. Common bile duct cannulation was achieved in 90.1% (226 procedures) of the 245 procedures reaching the papilla and in 87.8% of procedures with a virginal papilla. Sphincterotomy was performed in 164 procedures with a success percentage of 98.2% and precut papillotomy in 30 procedures with a success percentage of 79.0%. Stone extraction and stent placement were successful in 93.2% (124 procedures) and 94.5% (96 procedures). The success-rate of pancreatic duct cannulation and was 88.9% (8 procedures) in all procedures and 85.7% in patients with a virginal papilla, pancreatic duct intervention was successful in 69.2% (9 procedures).

Table 4. Procedural success endoscopists

CBD-cannulation success

PD- cannulation success

Sphincterotomy success

Precut papillotomy success

Stone extraction success

Stent placement success

PD- Intervention success

Procedural intention accomplished success

Success CHE 2016

90.1%

88.9%

98.2%

79.0%

93.2%

94.5%

69.2%

89.0%

National success 20167

90.5%

88.5%

93.4%

DSG7*

-

-

-

-

-

-

-

>80%

ASGE5 **

>90%

>90%

-

-

≥90%

≥90%

-

-

ESGE6**

≥90%

-

-

-

>90

≥90%

-

-

CBD: Common bile duct; PD: Pancreatic duct; CHE: Catharina Hospital Eindhoven; DSG: Dutch Society of Gastroenterology; ASGE, American Society of Gastrointestinal Endoscopy.

*Applicable for Schutz level 1 procedures.

**Applicable for patients without anatomic abnormalities in the common bile duct.

Correlations of the self-assessment with complications and mortality

The Spearman’s correlation was run for the 254 patients registered in the quality registration to determine the relationship between the self-assessment of the quality registration and the post-ERCP complications, all complications together and separately, as well as mortality. For some interventions e.g. pancreatic duct cannulation and pancreatic duct intervention, it was not possible to measure the correlation because of the lack of power.

A statistically significant negative correlation was found between self-assessment of the stent placement and the total complications post ERCP (r=-0.315; p=0.018). The only complication that showed a correlation with self-assessment was post-ERCP cholangitis: a weak, negative correlation (r= -0.308; p=0.021). Other interventions showed neither a correlation with complications nor with mortality. Two patients died because of post-ERCP complications during this time period. One of these was registered in the NEQR. This 68-year-old patient underwent common bile duct cannulation, sphincterotomy and stone extraction, which were rated 99%, 98% and 96% respectively by the endoscopist. Nevertheless, this patient appeared to have a post-ERCP perforation and died due to multi organ failure caused by abdominal sepsis. The other non-registered patient was 92-year-old, ASA 3 and already septic before ERCP. ERCP was performed with midazolam and fentanyl sedation. Cannulation of the common bile duct was possible with a guidewire, but stone-removal was difficult, and a plastic stent was inserted in the common bile duct. At the end of the procedure the patient developed hypoxia and bradycardia resulting in an admission to the intensive care and eventually leading to death by cardiac complications.

Discussion

This study demonstrates that subjective scoring of ERCP quality only by self-assessment of the endoscopist does not correlate with objective parameters of quality such as complications and mortality.

The examined patient population of this study was of sufficient power to draw clinically relevant conclusions and characteristics were comparable to previous studies on this subject [9,21,24,25]. Only a difficult stent insertion as assessed by the endoscopist showed a correlation with overall complications. Our total complication rate (13.5 percent) was a little higher than in the rates reported in the literature. An explanation might be the higher rate of cholangitis (4.8%) in our study, maybe caused by a relatively low precut success (79.0%). The mortality rate (0.6%) was comparable to earlier reports [14,17-19,24].

Self-assessment scores have shown to be useful in enhancing the learning curves in endoscopy trainees [1,11,32]. The authors also believe that self-assessment helps improving quality of endoscopic skills. To use self-assessment as the main ingredient for quality measurements of experienced endoscopists, however, seems debatable and possible pitfalls need to be addressed. First, the subjective NEQR does not rate some important objective clinical ERCP outcomes such as 30-day success, post-ERCP complications and mortality. The parameters used in the RAF-E are correlated with the direct procedural technical outcome, but these are in fact surrogate markers [9]. The markers give information about the procedural success, but do not predict post-ERCP success. In addition, the RAF-E does not include the number of papilla cannulation attempts or the cannulation time. Difficult cannulation of the common bile duct defined as >5 minutes or >5 cannulation attempts has proven to be a risk factor for post-ERCP pancreatitis [33,34]. ESGE guidelines in 2018 and ASGE guidelines in 2015 advised to document these cannulation attempts and post-ERCP complications, such as pancreatitis, cholangitis, perforation and bleeding [5,6].

Secondly, when political decisions about where ERCP are allowed to be performed and by whom are based on a subjective self-assessment, this scoring method is susceptible to overrating of endoscopy skills. In the Netherlands the NEQR is a quality parameter that is followed up by the national Ministry of Health. It is expected that in the near future NEQR will determine whether departments and/or individual endoscopists may perform ERCP, therefore an objective registration is pivotal.

The RAF-E subjectivity is also demonstrated in this study by the case of a perforation leading to death. A positive NEQR filled in by the endoscopist does not guarantee foreclosure of complications or even death, as has been described earlier.

Although the reported patient characteristics and ERCP outcomes are comparable to other reports some restrictions of this study should be mentioned. It was designed as a retrospective single center study, included only one-year registration, which was performed in the beginning of the Dutch registration of RAF-E. The latter could be an explanation for 24% missing self-assessments. Other reasons for not filling in the NEQR completely or not at all were: interfering with clinical work, too time consuming, need to login on a separate website, because there is no link between ERCP report and NEQR-website. Notable is that the complication rates of the 79 missing procedures in the NEQR are mostly comparable with the rates of the complete registration as demonstrated in Table 2. Therefore, no registration bias seems to be caused by this loss of registration. Another point if criticism may be the large difference in ERCP numbers per endoscopist (range 13 to 100), making it statistically difficult to compare the results of individual endoscopists.

Based on our findings we suggest that an ERCP quality registration should be determined mostly by procedural outcome: i.e. objective clinical parameters (pancreatitis, cholangitis, bleeding, perforation, cardiopulmonary complications and mortality), measured in a 30-day post-ERCP time period. Additionally, the number of papillary cannulation attempts and cannulation time should be taken into account. Subjective self-assessment scoring should only play a minor role and mainly be used to enhance the learning curve of endoscopy trainees or junior consultants. We believe that objective and harder clinical outcome measures will enhance representativeness of the mostly subjective NEQR results, improving its usefulness in future political decisions on quality, volume criteria and centralization of ERCP.

To conclude, a quality registration based on subjective self-assessment of ERCP does not correlate with objective clinical outcomes. To improve the usefulness of endoscopy quality registrations, clinical outcome measures in a 30-day post-ERCP period should also be taken into account.

Conflicts of interest

None.

References

  1. Koch AD, Haringsma J, Schoon EJ, de Man RA, Kuipers EJ (2012) Competence measurement during colonoscopy training: the use of self-assessment of performance measures. Am J Gastroenterol 107: 971-975. [Crossref]
  2. Sarker SK, Albrani T, Zaman A, Kumar I (2010) Procedural performance in gastrointestinal endoscopy: Live and simulated. World J Surg 34: 1764-1770. [crossef]
  3. Sporea I, Popescu A, Sirli R, Pascu O, Prelipcean CC, et al. (2017) Proposed score for the self-assessment of an endoscopy department performance in colonoscopy screening. Clujul Medical 90: 28-32.
  4. Parihar V, Moran C, Maheshwari P, Cheriyan D, O'Toole A, et al. (2018) Measuring the value of endoscopic retrograde cholangiopancreatography activity: an opportunity to stratify endoscopists on the basis of their value. Eur J Gastroenterol Hepatol 30: 718-721. [Crossref]
  5. Adler D, Lieb J, Cohen J, Pike I, Park W, et al. (2015) Quality indicators for ERCP. Gastrointest Endosc 81: 54-66. [Crossref]
  6. Domagk D, Oppong KW, Aabakken L, Czakó L, Gyökeres T, et al. (2018) Performance measures for endoscopic retrograde cholangiopancreatography and endoscopic ultrasound: A European Society of gastrointestinal endoscopy (ESGE) quality improvement initiative. United European Gastroenterology Journal 6: 1448-1460.
  7. Inspectie voor de Gezondheidszorg, Nederlandse Vereniging van Ziekenhuizen, Nederlandse Federatie van Universitair Medische Centra, Federatie Medisch Specialisten, Verpleegkundigen & Verzorgenden Nederland. Basisset medisch specialistische zorg: kwaliteitsindicatoren voor ziekenhuizen en particuliere klinieken 2017. Utrecht: Ministerie van Volksgezondheid, Welzijn en Sport; 2016.
  8. Inspectie voor de Gezondheidszorg. Het resultaat telt ziekenhuizen 2015. Utrecht: Ministerie van Volksgezondheid, Welzijn en Sport; 2017.
  9. Ekkelenkamp VE, de Man RA, Ter Borg F, Borg PC, Bruno MJ, et al. (2015) Prospective evaluation of ERCP performance: results of a nationwide quality registry. Endoscopy 47: 503-507.
  10. Baron TH, Petersen BT, Mergener K, Chak A, Cohen J, et al. (2006) Quality indicators for endoscopic retrograde cholangiopancreatography. Gastrointestinal Endoscopy 63: S29-S34.
  11. Ekkelenkamp VE, Koch AD, Haringsma J, Poley JW, van Buuren HR, et al. (2014) Quality evaluation through self-assessment: a novel method to gain insight into ERCP performance. Frontline Gastroenterol 5: 10-16.
  12. Loperfido S, Costamagna G (2017) Endoscopic retrograde cholangiopancreatography: Indications, patient preparation, and complications: UpToDate; 2016 [updated May 19, 2016; cited 2017 June 13]. 19.0:[Available from: https://www.uptodate.com/contents/endoscopic-retrograde-cholangiopancreatography-indications-patient-preparation-and-complications.
  13. Cotton PB, Lehman G, Vennes J, Geenen JE, Russell RC, et al. (1991) Endoscopic sphincterotomy complications and their management: an attempt at consensus. Gastrointest Endosc 37: 383-393.
  14. Wang P, Li ZS, Liu F, Ren X, Lu NH, et al. (2009) Risk factors for ERCP-related complications: a prospective multicenter study. Am J Gastroenterol 104: 31-40.
  15. Chawla S, Willingham FF (2014) Cardiopulmonary complications of endoscopic retrograde cholangiopancreatography. Techniques in Gastrointestinal Endoscopy 16: 144-149.
  16. Colton JB, Curran CC (2009) Quality indicators, including complications, of ERCP in a community setting: a prospective study. Gastrointestinal Endoscopy 70: 457-467.
  17. Glomsaker T, Hoff G, Kvaløy JT, Søreide K, Aabakken L, et al. (2013) Patterns and predictive factors of complications after endoscopic retrograde cholangiopancreatography. The British journal of Surgery 100: 373-380.
  18. Siiki A, Tamminen A, Tomminen T, Kuusanmäki P (2012) ERCP procedures in a Finnish community hospital: a retrospective analysis of 1207 cases. Scandinavian Journal of Surgery 101: 45-50.
  19. Kapral C, Muhlberger A, Wewalka F, Duller C, Knoflach P, et al. (2012) Quality assessment of endoscopic retrograde cholangiopancreatography: results of a running nationwide Austrian benchmarking project after 5 years of implementation. Eur J Gastroenterol Hepatol 24: 1447-1454.
  20. Enochsson L, Swahn F, Arnelo U, Nilsson M, Lohr M, et al. (2010) Nationwide, population-based data from 11,074 ERCP procedures from the Swedish registry for gallstone surgery and ERCP. Gastrointest Endosc 72: 1175-1184.
  21. Williams EJ, Taylor S, Fairclough P, Hamlyn A, Logan RF, et al. (2007) Risk factors for complication following ERCP; results of a large-scale, prospective multicenter study. Endoscopy 39: 793-801.
  22. Coelho-Prabhu N, Shah ND, Van Houten H, Kamath PS, Baron TH (2013) Endoscopic retrograde cholangiopancreatography: utilisation and outcomes in a 10-year population-based cohort. BMJ Open 3: e002689.
  23. Cotton PB, Garrow DA, Gallagher J, Romagnuolo J (2009) Risk factors for complications after ERCP: a multivariate analysis of 11,497 procedures over 12 years. Gastrointestinal Endoscopy 70: 80-88.
  24. Vitte RL, Morfoisse JJ, Investigator Group of Association Nationale des Gastroentérologues des Hôpitaux Gnr (2007) Evaluation of endoscopic retrograde cholangiopancreatography procedures performed in general hospitals in France. Gastroenterologie Clinique et Biologique 31: 740-749.
  25. Mariani A, Segato S, Anderloni A, Cengia G, Parravicini M, et al. (2019) Prospective evaluation of ERCP performance in an Italian regional database study. Digestive and Liver Disease 51: 978-984.
  26. Christensen M, Matzen P, Schulze S, Rosenberg J (2004) Complications of ERCP: a prospective study. Gastrointestinal Endoscopy 60: 721-731.
  27. Kozarek RA, Baron TH, Carr-Locke DL (2013) ERCP. 2nd ed. Philadelphia: Elsevier/Saunders.
  28. Chandrasekhara V, Khashab MA, Muthusamy VR, Acosta RD, Agrawal D, et al. (2017) Adverse events associated with ERCP. Gastrointestinal Endoscopy 85: 32-47.
  29. Judd S, Antaki F (2014) Infectious complications of endoscopic retrograde cholangiopancreatography (ERCP). Techniques in Gastrointestinal Endoscopy 16: 183-186.
  30. Loperfido S, Angelini G, Benedetti G, Chilovi F, Costan F, et al. (1998) Major early complications from diagnostic and therapeutic ERCP: a prospective multicenter study. Gastrointestinal Endoscopy 48: 1-10.
  31. Freeman ML (2012) Complications of endoscopic retrograde cholangiopancreatography. Techniques in Gastrointestinal Endoscopy 14: 148-155.
  32. Ekkelenkamp VE, Koch AD, de Man RA, Kuipers EJ (2016) Training and competence assessment in GI endoscopy: a systematic review. Gut 65: 607.
  33. Dumonceau JM, Andriulli A, Elmunzer BJ, Mariani A, Meister T, et al. (2014) Prophylaxis of post-ERCP pancreatitis: European Society of Gastrointestinal Endoscopy (ESGE) Guideline - updated June 2014. Endoscopy 46: 799-815.
  34. Dumonceau JM, Kapral C, Aabakken L, Papanikolaou IS, Tringali A, et al. (2020) ERCP related adverse events: European Society of gastrointestinal endoscopy (ESGE) guideline. Endoscopy 52: 127-149.

Editorial Information

Editor-in-Chief

Ying-Fu Chen
Kaohsiung Medical University, Taiwan

Article Type

Research Article

Publication history

Received date: May 27, 2020
Accepted date: June 15, 2020
Published date: June 19, 2020

Copyright

©2020 Gilissen LPL. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Citation

Gilissen LPL, Meijer S, Flink H, Friederich P, Ramaker J, et al. (2020) The Dutch national ERCP quality registration using self-assessment does not correlate with clinical ERCP outcome. Trends Med 20: DOI: 10.15761/TiM.1000239

Corresponding author

Lennard PL Gilissen

MD, PhD, Gastroenterologist and Hepatologist, Catharina Hospital Eindhoven, Michelangelolaan 2, 5623 EJ Eindhoven, Netherlands

E-mail : bhuvaneswari.bibleraaj@uhsm.nhs.uk

Table 1. The Dutch National ERCP Quality Registration form (extracted from website https://portfolio.vrest.com and translated to English)

Items in the NEQR

Example from daily practice

Date of ERCP

Patient ID

Endoscopist

May 1. 2020

0123456789

Dr. L. Gilissen

General information

   ASA classification (1 / 2 / 3 / 4 / 5)

ASA2

Context of ERCP

Procedural intention (eg stone removal, stent insertion/renewal/removal, pancreatic intervention)

Complete stone removal common bile duct

Virginal papilla maior? (yes / no)

yes

Last ERCP unsuccessful? (yes / no / not applicable)

Not applicable

Schutz classification (1, 2, 3)

2 (stone > 10 mm)

Information about intervention

Papilla reached (yes / no)

yes

Choledochal duct cannulation (yes / no / partially)

yes

Choledochal duct cannulation on visual analogue scale

Unintentional pancreatic duct cannulation (yes / no / not applicable)

Not and no contrast

Papillotomy (not performed / yes / partially / no)

successful

Papillotomy on visual analogue scale

Precut papillotomy (not performed / yes / partially / no)

Not performed

Complete stone clearance (not performed / yes / partially / no)

yes

Stone clearance on visual analogue scale

Succeeded in procedural intention? (yes / no)

yes

Table 2. Characteristics of study population

Total procedures

NEQR

N = 333

%

N=254

%

Age

Mean

66.8±16

-

66.7±17

-

Gender

Female

Male

185

148

55.6

44.4

141

113

55.5

44.5

ASA-score

I

II

III

IV

108

162

61

2

32.4

48.6

18.3

0.6

93

118

42

1

36.6

46.5

16.5

0.4

Schutz’ degree of difficulty *

Grade 1

Grade 2

Grade 3

175

45

34

68.9

17.7

13.4

Intention

Complete stone extraction CBD

Metal stent – stenosis CBD

Endoprosthesis – stenosis CBD

Stent dysfunction

Endoprosthesis bile leakage

Therapy chronic pancreatitis

Suspected sphincter of Oddi dyskinesia

Pancreas divisum

Others

202

56

22

17

10

7

2

1

16

60.7

16.8

6.6

5.1

3.0

2.1

0.6

0.3

4.8

158

50

13

11

7

2

2

1

10

62.2

19.7

5.1

4.3

2.8

0.8

0.8

0.4

3.9

Sedation

Propofol sedation

Traditional sedation (midazolam/fentanyl)

General anaesthesia

321

8

4

96.4

2.4

1.2

254

6

3

96.5

2.4

1.2

Virginal papilla

Yes

No

205

128

61.6

38.4

157

97

61.8

38.2

NEQR, National ERCP Quality Registration; N, number of valid cases; ASA, American Society of Anaesthesiologist; CBD, common bile duct; PD, pancreatic duct.

*Only measured in the NEQR

Table 3. Frequencies and percentages of post-ERCP complications

Total procedures (N=333)

Procedures registered in NEQR(N=254)

Procedures not registered in NEQR (N=79)

Literature

Frequency

Percent

Frequency

Percent

Frequency

Percent

Percent (ref)

Pancreatitis

14

4.2

13

5.1

1

1.3

1.6-4.516-25

Cholangitis

16

4.8

15

5.9

1

1.3

0.8-5.014,16-19,21,22,25,26

Bleeding

6

1.8

5

2.0

1

1.3

0.3-2.916,17,20,23,25

Perforation

5

1.5

5

2.0

0

0

0.1-1.014,16-20,22,25

Cholecystitis

3

0.9

2

0.8

1

1.3

0.2-0.527-29

Liver abscess

0

-

0

-

0

-

0.129-30

Cardiopulmonary complications

7

2.1

3

1.2

4

5.0

0.1-2.419,21,24,26

Total complications

45

13.5

37

14.6

8

10.1

4.0-11.614,16-25,31

ERCP related mortality

2

0.6

1

0.4

1

1.3

0.2-1.214,17-19,24

N: Number of valid cases; NEQR: National ERCP quality registration; ERCP: Endoscopic retrograde pancreaticography; ref: References

Table 4. Procedural success endoscopists

CBD-cannulation success

PD- cannulation success

Sphincterotomy success

Precut papillotomy success

Stone extraction success

Stent placement success

PD- Intervention success

Procedural intention accomplished success

Success CHE 2016

90.1%

88.9%

98.2%

79.0%

93.2%

94.5%

69.2%

89.0%

National success 20167

90.5%

88.5%

93.4%

DSG7*

-

-

-

-

-

-

-

>80%

ASGE5 **

>90%

>90%

-

-

≥90%

≥90%

-

-

ESGE6**

≥90%

-

-

-

>90

≥90%

-

-

CBD: Common bile duct; PD: Pancreatic duct; CHE: Catharina Hospital Eindhoven; DSG: Dutch Society of Gastroenterology; ASGE, American Society of Gastrointestinal Endoscopy.

*Applicable for Schutz level 1 procedures.

**Applicable for patients without anatomic abnormalities in the common bile duct.
